Short-Circuit Protection Device : Fuse 15A
Rated impulse withstand voltage (kV) : 6
Pollution level (usage environment : 3
Vibration resistance : Resonance test: double amplitude 0.1 mm, frequency 10 to 55 Hz, constant vibration endurance test: double amplitude 3.0 mm, frequency 16.7 Hz
Opening and closing frequency (times/hour) : 1200 (Usage rate 40%)
Open thermal current (A) : 10
Withstand voltage (V/min) : Between live parts and earth/between live parts of different polarities: AC2500
Button dimensions (mm) : Φ65
Conditional short circuit current (A) : 1000
Relative humidity (%RH) : 45 to 85°C (-5 to 40°C) (no freezing or condensation)
Shock resistance (malfunction) (m/s 2 ) : 100
Shock resistance (durability) (m/s 2 ) : 500

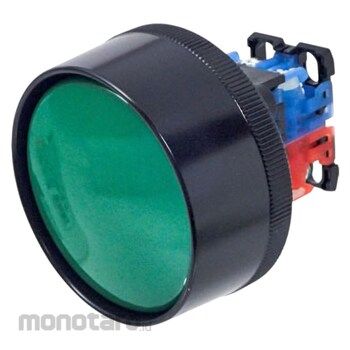

Fuji Electric Push Button Switch AR30
#Grup produk P112429843
Spesifikasi
| Ambient Temperature (°C) | -20 to 70 (no freezing or condensation) |
|---|---|
| Button Color | Green |
| Button Shape | Round (H-ring extra large type) |
| Contact Configuration | 1a1b |
| Electrical Durability | Over 500,000 times (at AC220V 6A) / Over 1 million times (at AC220V 3A) |
| Frame | Round frame |
| Insulation Resistance (MO) | Between live parts and earth/between live parts of different polarities: 100 or more (DC 500V megger) |
| Kinds | Non-illuminated |
| Mechanical Durability | Over 5 million times |
| Mounting Diameter (mm) | 30.5 |
| Operation Method | Momentary |
| Protective Structure | IP65 |
| Rated Frequency (Hz) | 50/60 |
| Rated Insulation Voltage (V) | AC/DC 600 |
| Standard | UL, CSA, TUV |
| Storage Temperature (°C) | -40 to 80 |
| Terminal Screws | M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting) |
| Terminal Shape | Screw terminals |
