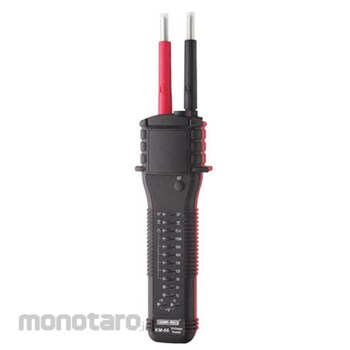

Kusam Meco Voltage Detector with EF Detection
#Grup produk P112424149
Spesifikasi
| APO Consumption (μA) | 6 (typical) |
|---|---|
| APO Timing (s) | Idle for 16 |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 278x57x40 |
| Low Battery (V) | Below approx. 2.6 |
| Operating Temperature (°C) | -10 to 55 |
| Pollution Degree | 2 |
| Power Supply | 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery x 2 |
| Relative Humidity | ≤ 90% |
| Sensing | Average for LED indication |
| Storage Temperature (°C) | -20 to 65 (£ 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (10 to 18°C or 28 to 50°C), or otherwise specified |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Voltage Detector With RCD Load Test & EF Detection MODEL- KM 69 (14 functions 19 ranges) / KM 66 (6 functions 14 ranges)
Special Features
EF-Detection
LCD Indication (KM 69)
RCD leakage-path (KM 69)
RST Phase Rotation Detection (KM 69) ̃ AC-Detection Shaker (KM 69)
Features
Handy & Stylish, Fits Comfortably in one’s hand
19mm Probe Pitch For Quick European Receptacle Testing
4mm Test Tips with IP2X Retractable shroud for IEC61243-3 Ed3
Detachable (Black) test lead for easy replacement
User Replaceable Screw-On stationary (Red) Probe Body
Battery-less ELV Limit (120VDC/50VAC) LED Indication
Battery-less DCV & ACV Auto-selection with LED polarity indication
Battery-less DCV 8-Ranges LED Indication:12, 24, ... to 1000V
Battery-less ACV 8-Ranges LED Indication:12, 24, ... to 1000V
Automatic Power On & Power Off
Non-contact EF-Detection (NCV)
Probe contact EF-Detection for more precise indication of live
Continuity:Audible beeper & visible LED indications
Display Backlight & flash-light for easy viewing in the dark (KM 69)
True RMS ACV Reading on LCD Numeric Display (KM 69)
AC-Detection Shaker indicates ACV is being measured (KM 69)
RCD Leakage Load for 230V AC / 30mA RCD Circuit Breakers (KM 69)
RST Phase sequence / Rotation indication (KM 69)
Low Battery warning for battery operated functions & features
Battery Access Door
Power Consumption (typical)
2.7mA for Power-on ready & DCV; 50mA for ACV (with shaker on) 105mA For RCD; 40mA for Buzzer on @ Continuity or EF function; 55mA for resistance or capacitance; Add 30mA for backlight on. (KM 69) 1mA for Power on ready; 40mA for Buzzer on @ Continuity of EF function (KM 66)
