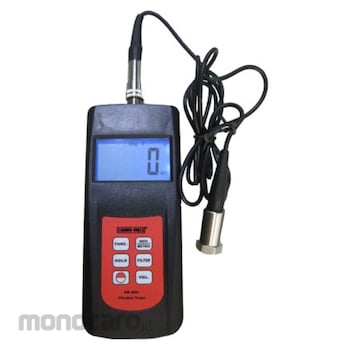

Kusam Meco Vibration Meter with External Sensor
#Grup produk P112424121
Spesifikasi
| Acceleration Measurement Range (m/s²) | 0.1- 400.0 equivalent peak 0.3 - 1312ft/s² |
|---|---|
| Accuracy | ±5% rdg + 2 digits |
| Dimensions (mm) | 124x62x30 |
| Displacement Measuring Range | 0.001 - 4.000mm; 0.04 - 160.0 mil, equivalent pk-pk |
| Display | 4 digits, 18 mm LCD |
| Frequency Measuring Range (Hz) | 1-20K |
| Frequency Range Acceleration (Hz) | 10-1k In '1' mode; 10-10k In '10' mode for bearing condition check |
| Frequency Range Displacement (Hz) | 10 to 1k |
| Frequency Range Velocity (Hz) | 10 to 1k |
| Operating Humidity (%RH) | Below 90 |
| Operating Temperature (°C) | 0 to 40 |
| Output | AC output 2.0V peak full scale (load resistance: above 10k) |
| PC interface | RS232C |
| Parameters Measured | Velocity, Acceleration, and Displacement RPM and Frequency |
| Power Supply | 4 x 1.5 AAA size (UM-4) batteries |
| RPM Measuring Range (rpm) | 60 - 99990 |
| Transducer | Piezoelectric accelerometer |
| Velocity Measuring Range (inch/s) | True RMS 0.000-16.00 |
| Velocity Measuring Range (mm/s) | 0.01- 400.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Vibration Meter Model KM 3961
Use the high - performance acceleration meter, realize the repetitiveness and accurate measurement
Bearing condition monitoring function
LCD digital display
Lightweight and easy to use
Wide frequency range (10Hz ~10kHz) in acceleration mode
AC output socket for headphones and recording
Optional head phones for use as electronic stethoscope
Can communicate with PC computer for statistics and printing by the optional cable and
the software for RS232C interface
Readings should be multiplied by 10 if the display show '10'
