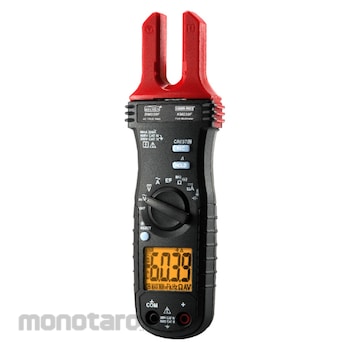

Kusam Meco LCD Display True RMS Digital Fork Type Clampmeter
#Grup produk P112422789
Spesifikasi
| Altitude (m) | Operating below 2000 |
|---|---|
| Auto Power Off (minute) | Idle for 32 |
| Basic Accuracy (%) | 1 |
| Dimensions (LxWxH) (mm) | Approx.193x57x32 |
| Display | 3-5/6 digits 6000 counts LCD display |
| Fork-Clamp Opening & Conductor Diameter (mm) | 12.5 max |
| Fork-Clamp Probe Width (mm) | 12 approx |
| Low Battery Indication (V) | Below Approx. 2.85 for Capacitance & Hz; Below Approx. 2.5 for other functions |
| Operating Temperature (°C) | 0 to 40 |
| Overload Protection | Current via Fork-Clamp: 200A AC rms at <400Hz, Voltage via terminals: 66V DC / 920V AC rms, Other functions via terminals: 600V DC / VAC rms |
| Pollution Degree | 2 |
| Power Consumption (mA) | 5 typical |
| Power Supply | 1.5V AAA x 2 battery |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | True RMS |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.1x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Update Rate (times/s) | 5/sec nominal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
TRMS Digital Fork Clampmeter Model KM039F - 22 Functions 21 Ranges
Fork-clamp Current measurement
12mm Slim-Probe open jaws for easy slide into tight wirings
Cx range 200.0mF to 2500mF for start & run motor capacitors
MAX/MIN Recording Mode
5ms Crest (Peak-Hold) Mode
Features
Backlight Display
Non-Contact EF-Detection (NCV) with Hi/Lo Selectable Sensitivities
Probe-contact EF-Detection (Single-pole) for precise indication of live
Auto ranging for all ranges
Relative Mode
Data Hold
BeepLit feature for Diode & continuity
Intelligent Auto-Power off
E.M.C.: Meets EN61326-1:2013
ACA functions, in an RF field of 1V/m:
Total Accuracy = Specified Accuracy + 40 digits at around 87MHz
DCmA and Ohm Functions, in an RF field of 1V/m:
Total Accuracy = Specified Accuracy + 25 digits
Other Functions, in an RF field of 3V/m :
Total Accuracy = Specified Accuracy + 20 digits
