Kusam Meco High Voltage Multifunction Phasing Sticks

HIGH VOLTAGE MULTIFUNCTION PHASING STICK
Model - PC7K / PC11K / PC22K / PC33K / PC44K

This NEW “PC” range of High Voltge Multifunction Phasing Stick are: all-in-one,a Phase Comparator with colour code scale indication, a Voltage Detector with Neon Indication & a Scaled analog Voltmeter. They are available in five models for applications up to 44 kV systems(6.6kV,11kV, 22kV, 33kV & 44 kV). These Dual Poles instruments incorporate modern, high quality glass fibre front end,composite polyurethane main body molding to give tough and very light weight construction and superior Safety features. They have analogue Colour Coded Dual Scales and Neon indication.
They are VDE0681 part 5 compliant and IEC1243-2. They are practical and efficient.Because of their multifunction capabilites, you do not need to buy separate instruments, you can therefore stay within your budget without compromise.
They are supplied complete with instruction manual. They are housed in a superb High quality modern Plastic Case with shock absorbing foam . They are suitable for indoor and outdoor use (in dry weather).
They do not require dismantling or re-assembling and do not have any user’s assembled parts, so eliminating the risks of assembly mistake and accidents during High Voltage Work. In a breakdown situation they are lighter than any other sticks available in the market today. The indicator has been screened for high immunity to interference fields. They determine the voltage and positively identify phases up to 44kV.
Fiberglass is of hot stick quality and tested to IEC specs(100kV/300mm for 1min). All front end (resistors) are encapsulated. These analog Multifunction phasing Sticks are ideally suited for testing of grounded or ungrounded systems. Important applications include checking voltage fuses,testing for correct phase connections, and for absence of high voltage on deenergized lines or apparatus. The dual scale read direct (no multiplier)in kV AC or in % of full scale and colour coded (Green = in phase; Red = out of phase). A Bright neon is included on the scale for easy visibility indoor and it has dual purpose

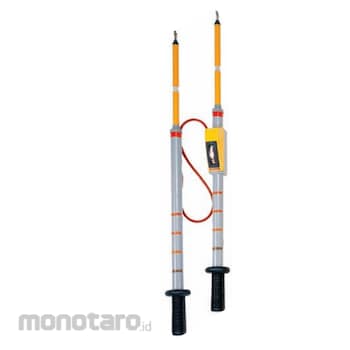

They are equipped with two fixed - length poles connected by a strong flexible, insulated cable. Hand guards are standard on all models. They are easy to handle, light weight, well insulated and designed to ensure maximum operator safety.

Recommended to use High Voltage gloves & insulating met for additional safety.
