Split type ground resistance on-line detector
2800 KC
On-line monitoring of loop grounding resistance and metal loop coupling resistance, and grounding condition monitoring.

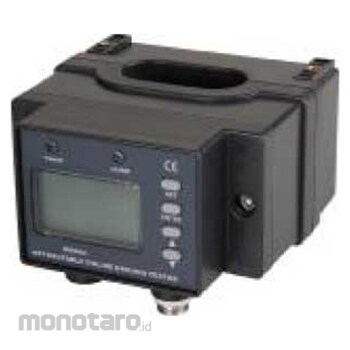

Kusam Meco Explosion-proof Split Type Ground Resistance On-Line Detector
#Grup produk P112422220
Spesifikasi
| Accessories | Detector, Aluminum alloy mounting parts-2pcs, 1M power communication cable-1set |
|---|---|
| Accuracy | ±2% Rdg ±3dgt (20 °C ±5 °C, Below 70%RH) |
| Alarm Indication | Detector sound and light alarm, system software alarm indication |
| Alarm Setting | Detector panel setting, System software settings |
| CT Size (mm) | 56x26 |
| Data Display | 4 digit LCD direct indication or doing secondly development Software to display |
| Dimensions (mm) | 119x118x76 |
| Explosion-proof Mark | Ex iallBT3Ga |
| Overflow Indication | When show value is beyond 200W, system software and LCD shows \"OLW\" sign |
| Power Consumption (mA) | 50 (Max.) |
| Power Supply | 6VDC, 50mA Max External power supply |
| Resistance Range (ohm) | 0.01-200 |
| Resistance Resolution (ohm) | 0.001 |
| Waterproof Level | IP56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
1. Split Type, no need to disconnect the grounding down conductor, easy to install, non-contact measurement technology, safe and reliable2. The grounding down conductor directly passes through the detector perforation, which does not affect the lighting protection grounding effect and the normal operation of the facility
3. The detector is waterproof and dust proof and can be installed outdoors
4. The detector with an audible and visual alarm. 2800KC with LCD that can be installed and used independently
You can observe the grounding resistance value at any time & set the alarm value
5. With Rs485 interface, network system can be set up to realize remote real-time monitoring
6. Explosion-proof products can be used in the corresponding flammable and explosive environment, explosion-proof mark Ex iallBT3Ga
