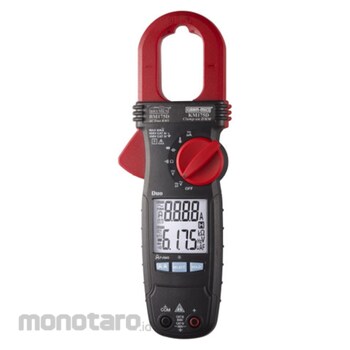

Kusam Meco Dual Display 600A AC TRMS Digital Clampmeter
#Grup produk P112422169
Spesifikasi
| APO Consumption (μA) | Typical 5 |
|---|---|
| APO Timing (minute) | Idle for 32 approx. |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 217x76x37 |
| Display | 3-5/6 digits 6000 counts, dual display |
| Jaws Opening Size & Conductor Diameter (mm) | 30 Max |
| Low Battery (V) | Below approx. 2.85 for Capacitance & Hz; Below approx. 2.5 for other functions |
| Operating Temperature (°C) | 0 to 40 |
| Power Consumption (mA) | typical 6.2 |
| Power Supply | Standard 1.5V AAA Size Battery X 2 |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | True RMS |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Update Rate (times/s) | 5 (nominal) |
| polarity | Automatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
AC True RMS Digital Clampmeter Model KM 175D
AmpTip TM low-current range
Backlighted LCD display
Duo-Core to simultaneously measure clamp-on Amps + A DMM functions
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
Display Hold & Non-Contact EF-Detection (NCV)
AC True RMS Voltage & Current functions
Fast 80ms Peak-RMS mode to capture in-rush currents
Probe contact EF-Detection for more precise indication of live
Line level ACV frequency 10.00Hz to 999.9Hz
Cx ranges 200.0 μF to 2500 μF for start & Run Motor Capacitors
