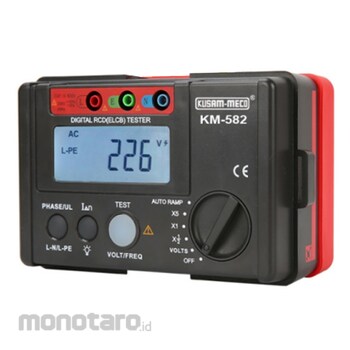

Kusam Meco Digital RCD (ELCB) Tester Suitable for Single-phase Circuits
#Grup produk P112421902
Spesifikasi
| Accuracy | ±(3%+3) |
|---|---|
| Compliance standard | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007; IEC 61557-6:2007, EN61326-1, EN61326-2-2 |
| Connection Check | Simultaneously test the trip time and trip current |
| Display (mm) | 71x34 |
| Frequency (Hz) | 45-65 |
| Lead Sequence Check | LCD |
| Operating Current (mA) | 10/20/30/100/300/500; 10/20/30/100/300/500; 10/20/30; 10/20/30/100/300/500 |
| Operating Voltage (V) | 195-253 |
| Phase Angle Selection (°) | 0 and 180 |
| Power | 1.5V battery (LR 6) x 6 |
| Product Size (WxHxD) (mm) | 160x100x71 |
| Range Setting | X1/2; X1; X5; Auto Ramp |
| Resolution (V) | 1 |
| Standard Accessories | Test line, elastic strap, manual |
| Trip Time Accuracy | ±(2%+2) |
| Voltage Range (V) | 30-600 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
KM-582 is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195-253V. Its voltage measurement range is 30-600V, 45-65Hz● Auto power off function
● LCD backlight
● Data Hold
● Auto ramp
● Buzzer indication to disconnect
● Over-range indication
● 1000 counts display
● Low battery indication: <7.2V
● Mis-operation buzzer
● Power off buzzer
● Fuse protection
● CAT III 600V
