Kusam Meco Digital Multifunction Power
#Grup produk P112421780
Spesifikasi
| Baudrate | 1200, 2400, 4800, 9600, 19200, 384000 |
|---|---|
| Communication | RS-485 ModBus RTU (Optional) |
| Current Range (A) | Input 5, suitable for 2m-6; Input 1, suitable for 2m-1.5 |
| Dielectric Strength | AC 2.8KV/Min, between Input / Power / Case |
| Dimensions (WxHxL) (mm) | 100x100x96 |
| Display | LCD display with backlight |
| Ethernet | TCP / IP 100 Base T |
| Harmonics | KM-PM-100H 15 times for voltage and current |
| Input Burden | Voltage = 0.25VA, Current = 0.2VA |
| Input Frequency (Hz) | 45-70 |
| Ip Code | Panel:IP64 ; Case:IP 20 |
| Mounting | Panel Flush Mounting |
| Operating Condition (°C) | -20 - +65 - 20- 90% RH Non-Condense |
| Output | 4 Alarm setting, 4 Sets DC ~ 4-20mA (output > 500Ω), 2 Sets of pulse |
| Power Comsuption (W) | <3 |
| Power Supply | AC 85~265V / DC 100 ~300V 50 / 60Hz |
| Response Time (s) | ≤ 1 |
| Storage Temperature (°C) | -40 to +75; 20-90% RH Non-Condense |
| System Supported | 1Φ 2 W / 1Φ 3 W / 3Φ 3 W / 3Φ 4 W |
| Voltage Range (V) | - Input 55-440V (L-L) (Max: 480V L-L); - Input 55-600V (L-L) (Max: 700V L-L) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

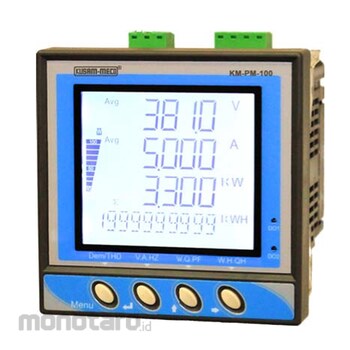

Digital Multifunction TRMS Power Meter MODEL- KM-PM-100
LCD display screen with backlight
Programmable brightness for backlight
Ethernet TCP _ IP 10/100 BaseT (Optional)
Programmable for PT and CT ratio
Measures ± WH and ± VARH (10-digit display)
TRMS smpling, 128 section per cycle
Password - protection for unauthorized setting
Memory for 10 years
