Kusam Meco DC Power Supply Dual O/P
#Grup produk P112421328
Sebelum PPN:
Rp8.499.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Current Display Accuracy | ±2% + 2 dgts |
|---|---|
| Current Effect | CV ≤ 1x10-4+ 0.5mV; CC≤ 2x10-3+ 6mA |
| Dimensions (mm) | 340x260x155 |
| Input Voltage (V) | 220 ± 10%; 50Hz ± 2Hz or 110 ± 10%; 60Hz ± 2Hz |
| Load Effect | CV ≤ 1x10-4+ 2mV (output current ≤3A) ≤ 1x10-4+ 5mV (output current >3A) CC≤ 2x10-3+ 6mA |
| Nominal Output Current (A) | 3 |
| Nominal Output Voltage (V) | 5±3% |
| Operating Humidity (%RH) | <80 |
| Operating Temperature (°C) | 0 to 40 |
| Output Current (A) | 2 X 0-5 |
| Output Current Effect | ≤ 1x10-4+1mV |
| Output Load Effect | ≤ 1x10-3 |
| Output voltage (V) | 2x0-30 |
| Parallel Current (A) | 0-10 |
| Parallel Voltage (V) | 0-30 |
| Ripple & Noise | CV≤ 0.5mVrms (output current ≤ 3A); ≤ 1.0mVrms (output current >3A); CC≤ 3mArms |
| Series Current (A) | 0-5 |
| Series Voltage (V) | 0-60 |
| Storage Temperature (°C) | -10 to 70 (< 70% R.H.) |
| Voltage Display Accuracy | ±1% + 2 dgts |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

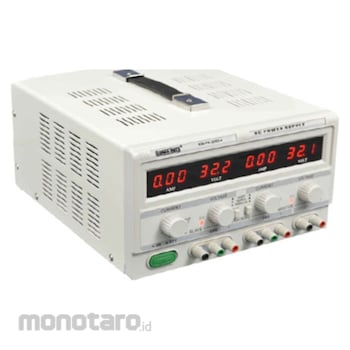

DC Power SupplyModel KM PS 302D-II /303D-II/305D-II
Two Adjustable outputs & one 5V / 3A fixed output
Two-way regulated power supply can be randomly in series, in parallel or in dependently according to requirements
And do not need external connection, just control by switch
Have constant Voltage & constant current operation mode. C.C & C.V convert automatically
Low Ripple & Noise
4 groups 3 LED Digital Display
Have Current limitation protection
5V Regular output power supply
