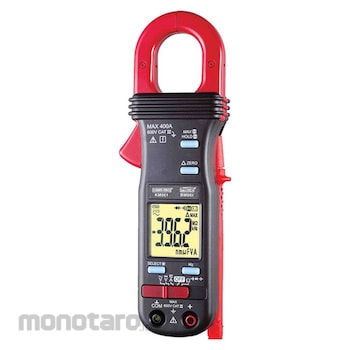

Kusam Meco DC /AC Autoranging Digital Clampmeter
#Grup produk P112421285
Spesifikasi
| APO Consumption (μA) | 190 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 188x63x40 |
| Display | 3-3/4 digits 4000 counts LCD display |
| Jaw Opening & Conductor Diameter (mm) | 30 Max |
| Low Battery (V) | Below approx 2.4 |
| Operating Temperature (°C) | 0 to 40 |
| Power Consumption (mA) | DCA & ACA: 11 typical, Other function: 2.9 typical |
| Power Supply | Standard 1.5V AAA Battery x 2 |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | Average |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Update Rate (times/s) | 3 (nominal) |
| polarity | Automatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
400A Dc/Ac Autoranging True RMS Clamp-On Meter With Full Multimeter Ranges Model KM 061 -AVERAGE SENSING - 18 FUNCTION 37 RANGES
Model KM 062 - TRUE RMS SENSING - 20 FUNCTION 37 RANGES
Measure line-level ACV frequency via test leads
Relative Zero feature
4000 Counts high resolution, Fast measurements
Versatile & Handy
Backlight display (KM 062)
Fully Autoranging on all functions for ease of use
AC True RMS Voltage & Current Functions (KM 062)
30ms Max HOLD to capture in-rush currents
DCA / ACA 0.1A to 400A non-invasive current measurements
Display Hold, PEAK-rms MAX HOLD & Data Hold
Fast Audible Continuity
Diode Test
