AC; AC+DC TRUE RMS MULTI PARAMETER MOBILE-LOGGER
DIGITAL MULTIMETER WITH PC INTERFACE
KM 525 Stand-alone logging capability 43500 / 87000 points for dual / single display with selectable logged interval 0.05s, 0.1s, 0.5s, 1s, 2s, 3s, 4s, 5s, 10s, 15s, 30s, 60s, 120s, 180s, 300s, 600s.
Safety
Double insulation per IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 and CAN/CSA-C22.2 No. 61010-1-12 Ed. 3.0 to Category IV 1000 Volts AC & DC
EMC : Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)
In an RF field of 3V/m : Capacitance function is not specified
Other function ranges :
Total Accuracy = Specified Accuracy+100digits
Performance above 3V/m is not specified.
- Rugged fire retarded casing with battery access door.
- Replaceable protective holster with probe-holders & Tilt-stand
- 1000V (Ohm,Capacitance & all other Functions)
Input protection
- LVD meets EN61010-1 CAT IV 1kV

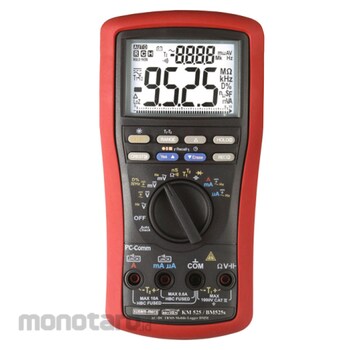

Kusam Meco Data Logging True RMS Digital Multimeter
#Grup produk P112421267
Spesifikasi
| APO Consumption (μA) | 50 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Accessories | Test lead pair, Battery installed, User Manual, One BKP60 banana plug type-K Thermocouple |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 208x103x64.5 |
| Display | 9999 Counts : ACV, DCV, Hz & nS; 6000 Counts : mV, µA, mA, A, Ohm & Capacitance |
| Ingress Protection | IP54 |
| Low Battery (V) | Below approx 7 |
| Operating Temperature (°C) | 0 to 45 |
| Overload Protection | μA & mA: 0.44A/1000V AC & V DC,IR 10kA F Fuse; A: 11A/1000V AC & V DC, IR 20kA F Fuse; V: 1100V DC/AC rms; mV, W & Others: 1000V DC/AC rms |
| Pollution Degree | 2 |
| Power Consumption (mA) | 5 typical |
| Power Supply | Single 9V battery |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 45°C |
| Sensing | AC, AC+DC True RMS |
| Storage Temperature (°C) | -20 to 60 (<80% R.H with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 45°C), or otherwise specified |
| Terminals (to COM) Measurement Category | V/A/mAmA: Category IV 1000V AC & V DC |
| Transient Protection (kV) | 12 (1.2/50µS surge) |
| Update Rate (times/s) | Digital Display : 5 (nominal); 41 Segments Bar-graph : 60 per second max |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Special Features:— Stand alone Multi Parameter logging
— Record Max/Min/MAX-MIN readings, Auto Ranging
— Audible & Visible Input Warning;
— Auto-Ranging Relative Zero Mode
— AutoCheck V & Auto-Ranging 50ms Record;
— T1-T2 differential temperature readings
— NCV & Probe-Contact EF-Detection
— nS conductance
— Lo-Z volts to drain Ghost Voltages (AutoCheck Feature)
— Logic & Line Level Frequency
— Logic Level Duty Cycle Readings
Feature
— DC Voltage basic Accuracy 0.08%
— 4 digit 10,000 counts Backlight Dual Digital LCD Display
— Low Battery Indication
— AC, AC+DC True RMS Conversion; Frequency Bandwidth 20kHz (V) & 1kHz (A)
— Fast Measurements, 5/sec
— Auto Power Off
