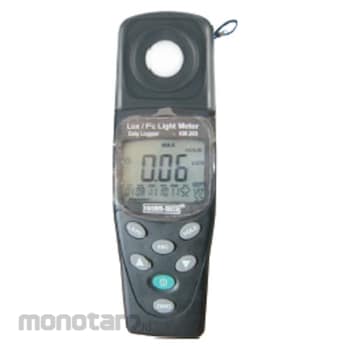

Digital Lux Meter (Data Logger)
Model KM 203
Spectral response close to CIE luminous spectral efficiency
Cosine Angular corrected
According to JIS C 1609:1993& CNS 5119 general A class specifications
Measuring lights source include all visible light
Measuring intensities of illumination in Lux or footcandles
Data Hold & Zero Adjustment
Large integrated circuit design
Auto range & Auto power off
Data Logger stores upto 7000 values
Maxi. Hold, Min. Hold & Average Hold
6% other visible light source
Over-range Indication of "OL"
Display In Foot Candle (fc)
USB interface
Kusam Meco Data Logging Digital Lux
#Grup produk P112421249
Spesifikasi
| Accuracy | ±3%(calibrated to standard incandescent lamp 2856° K) |
|---|---|
| Angle Deviation from Cosine Characteristic | 30° ± 2%; 60° :± 6%; 80° :± 25% |
| Current (mA) | Approx. 2 |
| Data Logging | 7000 records |
| Dimensions (LxWxH) (mm) | 172x55x38 |
| Display | 2000 counts large LCD Display |
| Operating Humidity (%RH) | 0-80 |
| Operating Temperature (°C) | -10 to 50 |
| Power Supply | DC 9V Battery Consumption |
| Range (FC) | 0-20/200/2.000/20.000 |
| Range (Lux) | 0-20/200/2.000/20.000/2.00.000 |
| Resolution (Lux) | 0.01 Lux |
| Sample Time (s) | 2.5 |
| Sampling Frequency (time/s) | 2.5 |
| Sensor | One silicon photodiode with filter |
