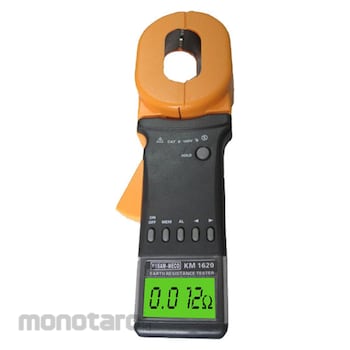

Clamp-On Type Earth Resistance Tester / Leakage Current Clampmeter
KM 1620 / KM 1720
KM-1620 / KM 1720 single-jaw type Earth Resistance Tester is widely used for earth resistance testing of the equipments in the field of power, telecommunication, as well as the other electrical equipments. It features easy operation, high-accuracy and good adaptation of testing environment.
Kusam Meco Clamp On Earth Resistance Tester with Leakage
#Grup produk P112420903
Spesifikasi
| Calibration | Automatic self calibration |
|---|---|
| Current Measurement Range (A) | 0.00-20.0 (KM 1720) |
| Display Screen | 4 digit LCD Backlight, 47x28.5mm in length |
| External Electric Field (V/m) | <1 |
| External Magnetic Field (A/m) | <40 |
| Jaw Opening Size (mm) | 32 |
| Maximum Bus Bar Dimension (mm) | 32x65 |
| Maximum Resistance Measurement Resolution (ohm) | 0.001 |
| Measured Current Frequency (Hz) | 50/60 (KM 1720) |
| Measurement Resistance Frequency (Hz) | >1K |
| Operating Humidity (%RH) | 10-90 |
| Operating Temperature (°C) | -10 to 55 |
| Power Supply | 4 X AAA alkaline dry battery (6V) |
| Protection Grade | Double insulation |
| Range Selection | Automatic |
| Resistance Measurement Range (ohm) | 0.01-1200 |
| Sample Time (s) | 1 |
| Setting Range of Current Alarm Critical Value (mA) | 1 - 499 (KM 1720) |
| Setting Range of Resistance Alarm Critical Value (ohm) | 1 - 199 (KM 1720) |
| Storable Measurement Data | 99 Units |
