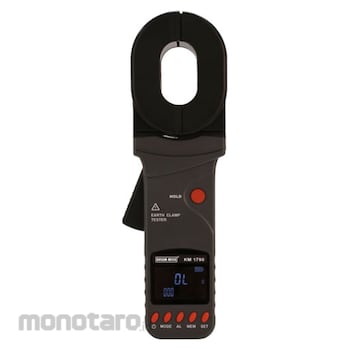

Clamp ground resistance tester
MODEL - KM 1690 / KM 1790
Clamp ground resistance tester is a new generation of groundless pile measurement method that our company's technical team meticulously developed. It uses a brand new generation of LCD, black screen backlight display and microprocessor technology to measure the grounding resistance through inductive method. When measuring a grounded system with a loop, it is not necessary to disconnect the ground lead wire, and no need for auxiliary electrodes. It is safe and fast. Widely used in telecommunications, electricity, meteorology,computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. The instrument has the test precision, fast, simple, stable, reliable and other features
Clamp ground resistance tester is microprocessor controlled, and accurately detects ground resistance. It uses a fast filtering technique to minimize interference. At the same time store 300 groups of data, with unique features such as numerical maintenance and intelligent alarm prompts
Kusam Meco Clamp Ground Resistance Tester Ground
#Grup produk P112420860
Sebelum PPN:
Rp24.999.900 - Rp31.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature and Humidity (°C/%RH) | 23±5, below 75 |
|---|---|
| Clamp Diameter (mm) | 55x32 |
| Data Review | \"MR\" symbol indication when reviewing data |
| Data Storage | 300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full |
| Display Mode | 4-digit LCD display, black screen design |
| Function | Ground resistant test, Loop resistance test, leakage current test |
| Ground Resistant Range | 0.01Ω-1200Ω Resolution: 0.001Ω Accuracy: ±1%±0.01Ω |
| Interference Test | Automatic identify interference signal, \"NOISE\" symbol indication when the interference current is large |
| LCD Dimensions (mm) | 46×29 |
| Measurement Method | Mutual induction |
| Meter Dimension (WxTxH) (mm) | 85x58x285 |
| Overflow Display | Exceed measurement range overflow function “OL ” symbol display |
| Power Supply | 4 section 5 Alkaline Dry Battery |
| Resistance Range (ohm) | 0-1200 |
| Resistance Resolution (Ω) | 0.001 |
| Sampling Speed (time/s) | About 2 |
| Type | Explosion-proof Type (KM 1690); Multifunctional Type(KM 1790) |
| Ω+A Synchronized Display | Ω+A same screen display |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Clamp ground resistance tester is microprocessor controlled, and accurately detects groundresistance. It uses a fast filtering technique to minimize interference. At the same time store
300 groups of data, with unique features such as numerical maintenance and intelligent alarm prompts
• New black screen design, luxury
• Ω+A same screen display
• Quick self-test function without waiting
• Using fast filtering technology, strong anti-interference ability
• New design, long life clamp head
• 300 sets of storage
