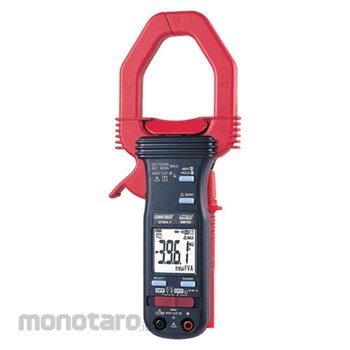

Kusam Meco AC/DC TRMS Autoranging Digital Clampmeter
#Grup produk P112420426
Spesifikasi
| APO Consumption (μA) | 190 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 227x78x40 |
| Display | 3 3⁄4digits 4000 counts |
| Jaw Opening Size (mm) | 50 Max |
| Low Battery (V) | Below approx. 2.5 |
| Operating Temperature (°C) | 0 to 40 |
| Pollution Degree | 2 |
| Power Consumption (mA) | Typical 11 for DCA / ACA & 2.9 for other functions |
| Power Supply | Standard 1.5V AAA Battery x 2 |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | AC TRMS Voltage & Current functions |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Transient Protection (kV) | 6.5 (1.2/50μs surge) |
| Update Rate (times/s) | 3 (nominal) |
| polarity | Automatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
1000ADC / 800A AC, 4000 Counts Clamp-on DMM Model - 2754 A - AVERAGE SENSING (16 Function 30 Ranges)
2754 A-T - TRUE RMS SENSING (17 Function 30 Ranges)
DC 1000A / AC 800A Clamp-on + Full Multimeter ranges
Versatile & Handy
Fully Auto-ranging on all functions
Backlighted Display (Model 2754A-T)
30ms Max HOLD to capture in-rush currents
Data Hold, Max Hold & Relative Zero Mode
Fast Audible continuity Test & Diode Test
Auto power off
