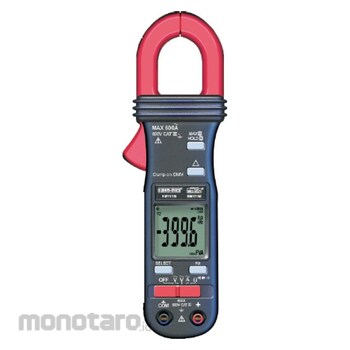

Kusam Meco AC Autoranging Digital Clampmeter with Ultra Slim Jaw
#Grup produk P112420189
Spesifikasi
| APO Consumption (μA) | 5 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Altitude (m) | Operating below 2000 |
| Basic Accuracy (%) | 0.5 |
| Dimensions (LxWxH) (mm) | 190x63x32 |
| Display | 33⁄4 Digits 4000 counts LCD display |
| Jaw Opening Size (mm) | 26 |
| Low Battery (V) | Below approx. 2.4 |
| Operating Temperature (°C) | 0 to 40 |
| Power Consumption (mA) | 2.8 typical, except 3.3 mA typical for current function |
| Power Supply | Single 3V coin Battery IEC CR-2032 |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | Average |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Update Rate (times/s) | 3 (nominal) |
| polarity | Automatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
3 1⁄2 Digits Digital Clampmeter + Multimeter D, EF-Detection & PC InterfaceModel KM 111M - Average Sensing - 18 Functions 30 Ranges
Model KM 112M -True RMS Sensing - 19 Functions 30 Ranges
* 600A AC Clamp-on + Multimeter ranges
* Ultra-slim jaws to access tight places
* Light weight & compact body to fit your hand
* Fully Auto-ranging for fast measurements
* Input Protection on all ranges
* Fast 30ms MAX Hold to capture in-rush currents
* Relative Zero mode
* Measures non-invasive ACA Frequency via clamp jaws
* Line level frequency measurements
* Data Hold function
