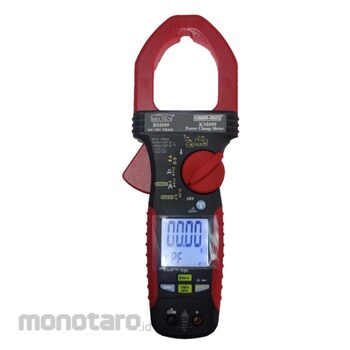

Kusam Meco AC & AC+DC TRMS Power Clamp-on Multimeter
#Grup produk P112420161
Spesifikasi
| APO Consumption (μA) | 25 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Accessories | Test leads (pair), Battery, User’s manual & Carrying case |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | Approx. 258x94x44 |
| Electromagnetic Compatibility | Meets EN61326-1: 2013 |
| Jaw Opening & Conductor Diameter (mm) | 51 Max |
| Low Battery (V) | Below approx. 2.5 |
| Operating Temperature (°C) | -10 to 50 |
| Other Functions via Terminals (Vrms) | 1000 |
| Overload Protection | Current via Clamp-on Jaws: 1000A rms at <400Hz |
| Power Consumption (mA) | Typical 33 for Current & Power functions, and 22 for others |
| Power Supply | 1.5V AA Size (IEC LR6) battery X 2 |
| Relative Humidity | Max. 80% for temperature up to 31 C decreasing linearly to 50% at 50 C |
| Safety Standard | Double insulation per IEC/UL/EN/BSEN 61010-1 Ed. 3.1, IEC/UL/EN/BSEN 61010-2-032 Ed. 4.0, IEC/UL/EN/BSEN 61010-031 Ed. 2.0 and the corresponding CAN/CSA-C22.2 regulations to Measurement, Categories III 1000V AC & DC and Category IV 600V AC & DC |
| Sensing | AC & AC+DC True RMS |
| Storage Temperature (°C) | -20 to 60, < 80% R.H. (With battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (-10 to 18°C or 28 to 50°C), or otherwise specified |
| Transient Protection (kV) | 8 (1.2/50ms surge) |
| Voltage via Terminal (V) (rms) | 1100 |
