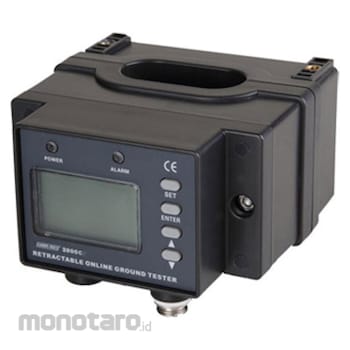

Kusam Meco 4 Digit LCD Display Non-Contact Grounding Resistance Online Tester with Display
#Grup produk P112419989
Spesifikasi
| Accessories | Detector, Aluminum alloy mounting parts-2pcs, 1M power communication cable-1set |
|---|---|
| Accuracy | ±2% Rdg ±3dgt (20 °C ±5 °C, Below 70%RH) |
| Alarm Indication | Detector sound and light alarm, system software alarm indication |
| Alarm Setting | Detector panel setting, System software settings |
| Connecting Line | 1m wire (5 core wire) |
| Data Display | 4 digit LCD direct indication or doing secondly development Software to display |
| Dimensions (mm) | 119x118x76 |
| Grounding Wire Size (mm) | 60x28 |
| Installing Screw Hole (mm) | Size Φ8 |
| LCD Display (mm) | 47x28.5 |
| Over Range Indication | When show value is beyond 200W, system software and LCD shows \"OLW\" sign |
| Power Supply | 6VDC, 50mA Max External power supply |
| Resistance Range (ohm) | 0.01-200 |
| Resistance Resolution (Ω) | 0.001 |
| Time for Single Measurement (s) | 0.5 |
| Waterproof Level | IP56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Split Type Ground Resistance On-line Detector MODEL KM 2800C
1. Split Type, no need to disconnect the grounding down conductor, easy to install, non-contact measurement technology, safe and reliable
2. The grounding down conductor directly passes through the detector perforation, which does not affect the lighting protection grounding effect and the normal operation of the facility
3. The detector with an audible and visual alarm. 2800C with LCD that can be installed and used independently
You can observe the grounding resistance value at any time & set the alarm value
5. With Rs485 interface, network system can be set up to realize remote real-time monitoring
GPRS Communication , RS232 / RS485 / MODBUS-RTU communication protocol Communication mode
