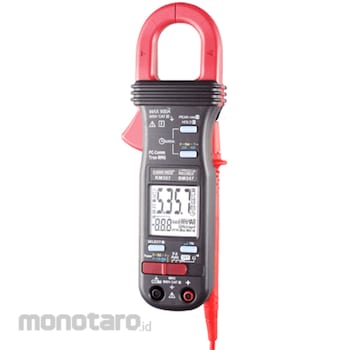

Kusam Meco 3-Phase 9999 Counts TRMS Power Clampmeter
#Grup produk P112419882
Spesifikasi
| APO Consumption (μA) | 4 typical |
|---|---|
| APO Timing (minute) | Idle for 30 |
| Altitude (m) | Operating below 2000 |
| Dimensions (LxWxH) (mm) | 189x78x40 |
| Display | Voltage Function: 6000 counts LCD display Power, Ohm & Hz functions: 9999 counts LCD display, ACA clamp-on function: 4000 counts LCD display |
| Jaw Opening & Conductor Diameter (mm) | 26 Max |
| Low Battery (V) | Below approx 2.4 |
| Ohm Function (mA) | 5.5 typical |
| Operating Temperature (°C) | 0 to 40 |
| Power Supply | Standard 1.5V AAA Battery x 2 Power Consumption |
| Relative Humidity | Max. 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
| Sensing | True RMS |
| Storage Temperature (°C) | -20 to 60 (< 80% R.H. with battery removed) |
| Temperature coefficient | Nominal 0.15x (specified accuracy) /°C @ (0 to 18°C or 28 to 40°C), or otherwise specified |
| Update Rate (times/s) | Power function: 2 (nominal) Voltage, ACA clamp-on & Ohm functions: 2 (nominal), Hz function: 1 (nominal) |
| Voltage, ACA, Hz & Power Functions (mA) | 11 typical |
| polarity | Automatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
3 Phase TRMS Power Clamp On Meter With kWHr Recording Function & PC Interface MODEL- KM-357 (18 Functions 23 Ranges)
Selectable Power parameters of W, VAR &
VA with Total Power Factor in dual-display
AutoVATM (Auto Selection on ACV, DCV or ACA functions)
Backlight display
kWHr Recording
Display Hold & PEAK-rms HOLD
PC-Comm computer interface capabilities
