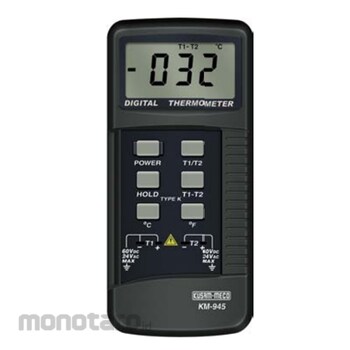

DIGITAL THERMOMETER
TWO INPUT K-TYPE
Model KM945
This instrument is a portable 3½ digit, compact - sized Digital Thermometer designed to use external K-type thermocouple as temperature sensor. Temperature indication follows National Bureau of Standards and IEC 584 temperature / voltage tables for K - type thermocouple.
Kusam Meco 3% Digit Digital Thermometer
#Grup produk P112419846
Spesifikasi
| Accessories | 9V battery (installed), Instruction Manual, Holster and “K” thermocouple bead probe 2 Nos. |
|---|---|
| Accuracy | for T1-T2 measurement: ±(0.5% T1-T2 reading + 2°C) or ±(0.5% T1-T2 reading + 2°F) |
| Accuracy (°C) | -50 - 1200 ±(0.3% + 2); 1200 - 1300 ±(0.6% + 2) |
| Accuracy (°F) | -58 - 1200 ±(0.3% rdg + 2); 1200 - 1999 ±(0.6% rdg + 2) |
| Battery | Standard 9V battery (NEDA 1604, IEC 6F22) |
| Dimensions (HxWxD) (mm) | 149x71x41 |
| Display | 3½ digit liquid crystal display (LCD) with maximum reading of 1999, displays T1, T2 & T1-T2 Temperature |
| Input Protection (V) | 60 DC or 24 AC maxi. input voltage on any combination input pins |
| Maximum Insulation Temperature (°C) | 260 |
| Maximum Insulation Temperature (°F) | 500 |
| Power Consumption (mA) | Approx. DC 3.8 (typical) |
| Probe Accuracy | ±2.2°C or ±0.75% of 0.75% of reading (whichever is greater) from 0°C to 800°C |
| Resolution (°C) | 0.1 |
| Resolution (°F) | 0.1 |
| Supplied Probe | 2 Nos. type “K” thermocouple bead probe (Teflon tape insulated) 4 feet long |
| Temperature Range (°C) | -50 to 1300 |
| Temperature Range (°F) | -58 to 1999 |
