Digital Storage Oscilloscopes
KM2025CL / KM2052CL +
The KM2000CL Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive fully in line with the traditional instrument usage habits, and is convenient for users to operate

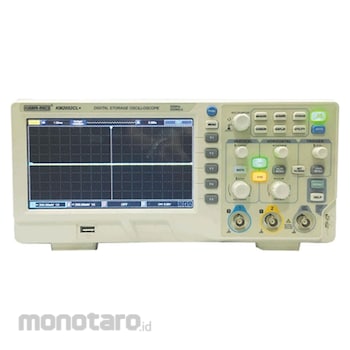

Kusam Meco 25MHz 2 Channels Digital Storage Oscilloscopes
#Grup produk P112419785
Spesifikasi
| Auto Measurement | 34 parameters (Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, Area, CycArea, OverSht, PreSht, Phase) |
|---|---|
| Bandwidth (MHz) | 25 |
| Channels | 2 Channels |
| Display | 7 inches TFT LCD, 800×480 |
| Frequency Counter (bits) | 6 |
| Mathematical Operations | A+B, A-B, AxB, A/B, FFT |
| Memory Depth (kpts) | 25 |
| Number Of Measurements | Display 5 measurements at the same |
| Power Cord | UT-D15:USB interface cable |
| Power Supply | 100-240V AC, 45-440Hz |
| Rise Time (ns) | <14 |
| Sampling Rate (Msa/s) | 250 |
| Standard Interfaces | USB OTG, Pass/Fail |
| Storage Methods | Setup, wave, bitmap |
| Time Base Mode | Y-T, X-Y, Roll |
| Time Base Scale | 10ns/div to 50s/div |
| Timing Accuracy (ppm) | ≤ ± (50+2 x service life) |
| Trigger Types | Edge, pulse, video (UTD2025CL) alternate |
| Vertical Scale (V/div) | 1m-20 |
| Waveform Capture Rate (wfm/s) | > 2000 |
