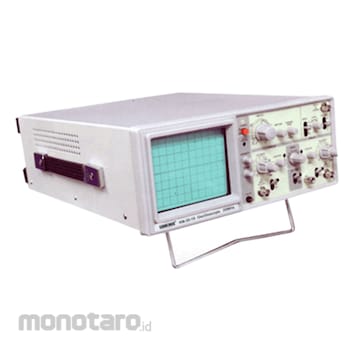

Kusam Meco 20MHz Analog Oscilloscope
#Grup produk P112419767
Spesifikasi
| CRT (Cathode Ray Tube) | 6inches rectangular screen with internal graticule, 8*10 div (1 div = 1cm) Vertical deflection |
|---|---|
| Deflection Factor | 5mV/div to 5V/div ± 3%, (1mV / div to 1V / div ± 5% at*5), 10steps |
| Display Mode | CH1, CH2, CH3, ADD ALT & CHOP |
| Input Coupling | AC, DC, Grounding |
| Maximum Input Voltage (V) | 40 (DC+AC peak value) when ≤ 1KHz |
| Polarity Selection | ±(CH2 only) |
| Power Supply | AC 220V ADN (110V optional) |
| Rise Time (ns) | ≤ 17.5 |
| Triggering Mode | AUTO / NORM / AV-V / AV-H |
| Vertical | ALT / CHOP / ADD X-x10 / Y-x5; Polarity reversal; CH1 Sync output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Dual Trace Analog Oscilloscopes Model - KM-20-10 - 20MHz
Dual channels / dual traces, X-Y mode
6inch display, high brightness oscilloscope tube
High sensitivity triggering, upto 1mV / division clearer display
than ordinary oscilloscope
TV synchronous separation circuit to observe stable TV signal
