Digital Storage Oscilloscopes
KM 2102 CEX+
KM2000CEX Series is the value leader of high performance economical oscilloscope 1GSa/s sampling rate and big screen. As it is widely loved by customers, the Series has been extended to three sub-series such as CEX/CEX+/CEX-II to meet the diversified needs of customers.
The classical CEX Series is a great entry for value oscilloscope requirements with features including FFTs, record and replay, roll mode, alternate trigger mode. The CEX+ provides a richer trigger mode, 34 kinds of automa

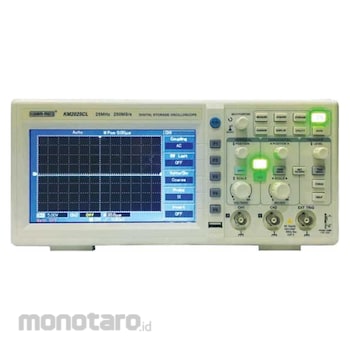

Kusam Meco 100MHz 2 Channels Digital Storage Oscilloscopes
#Grup produk P112419721
Spesifikasi
| Auto Measurement | 23 types |
|---|---|
| Bandwidth (MHz) | 100 MHz |
| Channels | 2 Channels |
| Deviation from Scope | ±10div (away from screen center) |
| Display Measurement | Display 5 measurements at the same time |
| Frequency Counter (bits) | 6 |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ± 2%, 24 ± 3pF |
| Mathematical Operations | +, -, x, ÷ |
| Memory Depth (kpts) | 25 |
| Rise Time (ns) | < 3.5 |
| Sampling Rate (GSa/s) | 1 GSa/s |
| Storage Methods | Setup, wave, bitmap |
| Time Base Mode | Y-T, X-Y, Roll |
| Time Base Scale | 2ns/div to 50s/div |
| Timing Accuracy (ppm) | ≤ ± (50+2 x service life) |
| Trigger Types | Edge, Pluse, Alternate |
| Vertical Resolution | 8 bits |
| Vertical Scale (V/div) | 1m-20 |
| Waveform Capture Rate (wfm/s) | ≥ 2000 |
