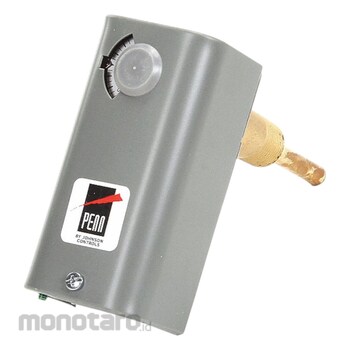

JOHNSON CONTROLS Thermowell Temp Control Adj
#Grup produk P112412047
Spesifikasi
| Application | Heating |
|---|---|
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Contact Rating (V) | 120 AC; 240 AC |
| Control Type | Knob |
| Differential Type | Adjustable |
| Electrical Connection Type | Screw Terminals |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Full Load Amps (A) | 10 @ 120V AC; 6 @ 240V AC |
| Includes | Remote Sensing Bulb |
| Key Features | Liquid-Filled Element Provides Rapid Response to Temperature Change; Universal Replacement |
| Maximum Control Temperature (°F) | 240 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Control Temperature (°F) | 100 |
| Mounting Type | Surface Mount |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Number of switches | 1 |
| Overall Depth (inch) | 1-13/16 |
| Overall Height (inch) | 4-3/8 |
| Overall Width (inch) | 2-1/8 |
| Pilot Duty Rating (A) | 125 @ 24/600V AC |
| Sensor Diameter (inch) | 3/8 |
| Sensor Length (inch) | 2-3/8 |
| Sensor Location | Remote |
| Standards | CSA LR948/4813 02; UL E6688 |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| Temperature Differential (°F) | 6 to 24 |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Sensitivity (°F) | +/- 4 |
| UNSPSC | 41112209 |
| Voltage (V) | 24 to 277 AC |
| Well Connection Size (inch) | 1/2 NPT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These temperature controls mount directly on boilers, tanks, and vessels and sense the temperature of the liquid or material inside. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These controls include a thermowell assembly that allows them to be directly immersed in liquids.
