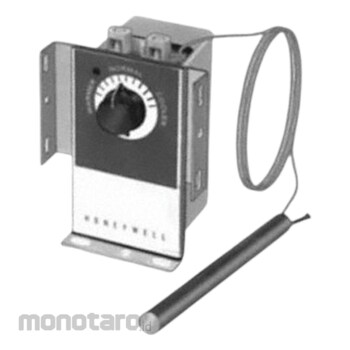

HONEYWELL Pneumatic Thermostat
#Grup produk P112390620
Spesifikasi
| Action | Direct and Reverse |
|---|---|
| Air Connection Outside Diameter (inch) | 1/4 |
| Air Consumption (scfm) | 0.022 |
| Application | Heat or Cool; Heat and Cool |
| Capillary Length (inch) | 36 |
| Compatible System Type | Mixed Air Dampers |
| Fitting Connection (inch) | Barbed 1/4 |
| Includes | Hangers, Mounting Screws, Tinnerman Clips |
| Includes Cover | Yes |
| Maximum Air Pressure (psi) | 25 |
| Maximum Control Temperature (°F) | 85 |
| Maximum Throttling (psi) | 9 |
| Minimum Control Temperature (°F) | 65 |
| Minimum Throttling (psi) | 3 |
| Number of Dials | Single |
| Number of Pipes | 2 |
| Overall Depth (inch) | 3 |
| Overall Height (inch) | 5 |
| Overall Width (inch) | 2-3/4 |
| Pneumatic Thermostat Type | Remote Bulb |
| Sensor Type | Remote Bulb |
| Temperature Scale | Celsius/Fahrenheit |
| Temperature Settings | Single Temperature |
| Thermostat Action | Direct and Reverse |
| UNSPSC | 31160000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These thermostats have a remote-bulb temperature sensor that allows the control unit to be placed away from the sensor. The sensor is connected to the thermostat with a capillary tube. These thermostats sense the temperature of the air entering an HVAC system and are commonly mounted inside the casing of the system. These are single-temperature thermostats, so they're ideal for basic heating and cooling in commercial buildings, schools, or hospitals. These pneumatic thermostats are powered by compressed air.
