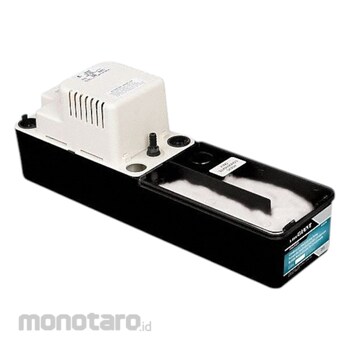

LITTLE GIANT Neutralizer Pump Combo
#Grup produk P112387042
Spesifikasi
| Application | Condensate Removal |
|---|---|
| Compatible Media Type | Clear Water |
| Cord Length (ft) | 6 |
| Discharge (inch) | 3/8 Barbed |
| Electrical Connection Type | Plug-In |
| For HVAC Heating Energy Size | 500,000 BTU |
| For HVAC System Duct | Ducted |
| Frequency (Hz) | 60 |
| Full Load Current (A) | 1.5 |
| HP | 1/16 |
| Included Accessories | Safety Switch |
| Includes Safety Switch | Safety Switch Included |
| Includes Tubing | No Tubing Included |
| Installation | Floor Standing |
| Intake (inch) | 1-1/8 Open |
| Maximum Flow Rate (GPM) | 1.33 @ 1 Foot of Head; 0.8 @ 10 Foot of Head; 0.42 @ 15 Foot of Head; 1.17 @ 5 Foot of Head |
| Maximum Head (ft) | 20 |
| Maximum Media Temperature (°F) | 140 |
| Maximum Operating Pressure (psi) | 8.7 |
| Minimum Media Temperature (°F) | 33 |
| Nameplate Voltage (V) | 115 AC |
| Number of Intakes | 3 |
| Overall Height (inch) | 7 |
| Overall Length (inch) | 19 |
| Overall Width (inch) | 5 |
| Phase | Single |
| Plenum Rated | No |
| Power Source | Corded Electric |
| Priming | Self-Priming |
| Pump Activation Type | Float Switch |
| Pump Technology | Centrifugal |
| Pump Type | Condensate Removal Pump |
| Shut Off Level (inch) | 1.1 |
| Standards | cCSAus; EPA |
| Tank Capacity (gal) | 1/2 |
| Tank Material | Plastic |
| Tank Opacity | Solid |
| Turn On Level (inch) | 2.5 |
| UNSPSC | 31160000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These neutralizer combination pumps remove acidic condensation from high-efficiency gas appliances, such as furnaces and water heaters. They have a chamber that treats the condensate with neutralizing media to raise its pH to prevent corrosion in downstream plumbing.
