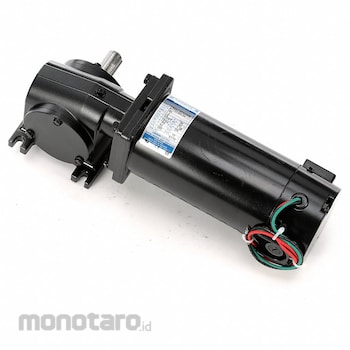

LEESON Motor Torque
#Grup produk P112386380
Spesifikasi
| Efficiency | 44.8% |
|---|---|
| Features | Precision Machined Aluminum Gear Housing |
| Full Load Current (A) | 1.3 |
| Gear Ratio | 10:1 |
| Housing Material | Aluminum |
| Input Horsepower (HP) | 1/4 |
| Keyway Depth (inch) | 3/16 |
| Keyway Length (inch) | 1-1/4 |
| Keyway Type | Square |
| Keyway Width (inch) | 3/16 |
| Length Less Shaft (inch) | 12.63 |
| Lubrication | Semi-Fluid Grease |
| Maximum Ambient Temperature (°C) | 40 |
| Maximum Output Speed (rpm) | 250 |
| Maximum Torque (in-lb) | 50 |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | H |
| Motor Type | Gearmotor |
| Mount Hole Center to Center Length (inch) | 3 |
| Mount Type | Special |
| Nameplate Speed (rpm) | 250 |
| Operating Voltage (V) | 180 DC |
| Output Shaft Diameter (inch) | 5/8 |
| Output Shaft Length (inch) | 1-13/16 |
| Output Shaft Type | Keyed |
| Overall Height (inch) | 6.61 |
| Overall Length (inch) | 12.64 |
| Overall Width (inch) | 4 |
| Overhung Load Capacity (lb) | 235 |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Right Angle |
| Standards | CE Certified; CSA Certified; UL Recognized |
| Thermal Protection | None |
| UNSPSC | 26101612 |
