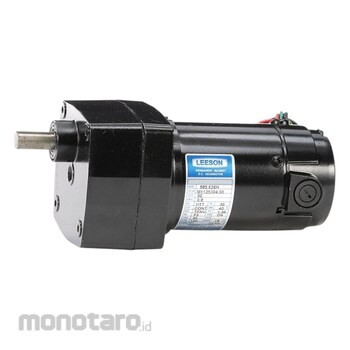

LEESON Gear Motor Torque
#Grup produk P112376143
Spesifikasi
| Bearing Type | Needle |
|---|---|
| Efficiency | 56.3% |
| Features | Performance Matched for Continuous Duty |
| Full Load Current (A) | 0.8 |
| Gear Material | Steel |
| Gear Ratio | 18:1 |
| Input Horsepower (HP) | 3/50 |
| Keyway Depth (inch) | 1-1/8 |
| Keyway Length (inch) | 3/4 |
| Keyway Type | Square |
| Keyway Width (inch) | 1-1/8 |
| Length Less Shaft (inch) | 8.74 |
| Lubrication | Semi-Fluid Grease |
| Maximum Ambient Temperature (°C) | 40 |
| Maximum Output Speed (rpm) | 100 |
| Maximum Torque (in-lb) | 36 |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | F |
| Motor Type | Gearmotor |
| Mount Hole Center to Center Length (inch) | 3.75 |
| Mount Hole Center-to-Center Width (inch) | 1.88 |
| Mount Type | Special |
| Nameplate Speed (rpm) | 100 |
| Operating Voltage (V) | 90 DC |
| Output Shaft Diameter (inch) | 1/2 |
| Output Shaft Length (inch) | 1 |
| Output Shaft Type | Keyed |
| Overall Height (inch) | 3.75 |
| Overall Length (inch) | 8.74 |
| Overall Width (inch) | 3.75 |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Parallel |
| Standards | CE Certified; CSA Certified; UL Recognized |
| Thermal Protection | None |
| UNSPSC | 26101612 |
