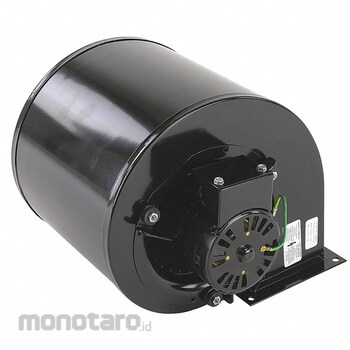

FASCO Blower
#Grup produk P112361822
Spesifikasi
| Airflow (CFM) | 460 @ 0.000 in SP; 393 @ 0.100 in SP; 359 @ 0.250 in SP; 254 @ 0.400 in SP; 187 @ 0.500 in SP |
|---|---|
| Assembly | Assembled |
| Bearing Type | Sleeve |
| Current (A) | 2.9 |
| Discharge Position | Top Horizontal |
| Drive Package with Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | Open Air Over |
| Frequency (Hz) | 60 |
| Housing Material | Steel |
| Inlet Diameter (inch) | 3-1/4 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fan Speed (rpm) | 1600 |
| Maximum Static Pressure (in wc) | 1/2 |
| Motor Enclosure | Open Air-Over |
| Motor Horsepower (HP) | 1/15 |
| Motor Insulation Class | B |
| Motor Speed (rpm) | 1600 |
| Motor Type | Shaded Pole |
| Mounting Orientation | Horizontal |
| Nameplate Voltage (V) | 115 AC |
| Number of Discharge Positions | 1 |
| Number of Inlets | 1 |
| Number of Speeds | 2 |
| OEM Replacement | No |
| Outlet Height (inch) | 3-5/8 |
| Outlet Shape | Rectangular |
| Outlet Type | Flanged |
| Outlet Width (inch) | 8 |
| Overall Depth (inch) | 10-1/2 |
| Overall Height (inch) | 9-15/16 |
| Overall Width (inch) | 8-7/8 |
| Phase | 1 |
| Rotation | CCW |
| Speed Controllable | Variable Speed |
| Standards | CSA Certified; UL Listed |
| Thermal Overload Protection | Yes |
| UNSPSC | 40101601 |
| Wheel Diameter (inch) | 3-1/4 |
| Wheel Material | Aluminum |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Direct-drive blowers with drive feature a blower wheel directly mounted onto the motor shaft to reduce friction and improve efficiency compared to a belt-drive blower. Direct-drive blowers have fewer moving parts and typically require less maintenance than belt-drive blowers.
