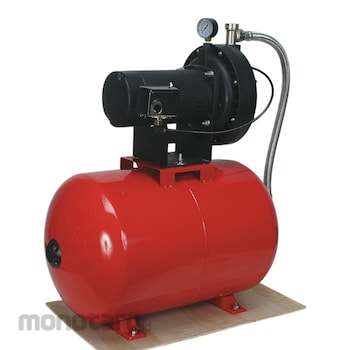

DAYTON Well Jet Pump System
#Grup produk P112347275
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Amps (A) | 17.0/8.5 |
|---|---|
| Discharge (inch) | 1 NPT |
| Flow Rate (gpm) | 18.4 @10 Ft. Lift @40 PSI; 19.2 @10 Ft. Lift @30 PSI; 10.2 @10 Ft. Lift @50 PSI |
| Includes | Pump and Tank, Requires Ejector Sold Separately (see accessories depending on application) |
| Inlet (inch) | 1 1/4 NPT |
| Maximum Inlet Pressure (PSI) | 75 |
| Maximum Suction Lift (ft) | 110 |
| Overall Height (inch) | 39 |
| Overall Length (inch) | 20 |
| Overall Width (inch) | 20 |
| Power (HP) | 1 |
| Rated Voltage (V) | 115/230 AC |
| Shut Off Pressure (psi) | 66 |
| Tank Bladder Pressure (psi) | 28 |
| Tank Capacity (gal) | 17.0 |
| UNSPSC | 20141301 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Convertible well jet pump systems transfer water from shallow wells, up to 25 ft. deep, or deep wells, greater than 25 ft. deep, to commercial and residential facilities, eliminating the need to connect to a municipal water source. These systems are connected to an ejector and precharged pressure tanks, providing consistent water flow. They are mounted above ground for repair and maintenance and are easier to access than submersible well pumps, which must be removed from the well for inspection.
