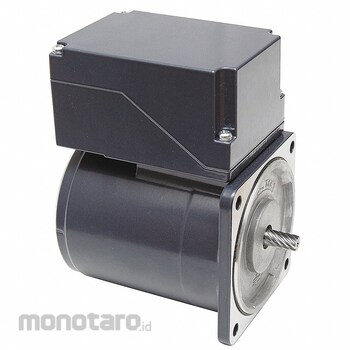

DAYTON AC Gearmotor Component Motor
#Grup produk P112333573
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Frequency (Hz) | 60 |
|---|---|
| Full Load Amps (A) | 0.41 |
| Includes | 2.3MFD Capacitor |
| Ins. Class | B |
| Length Less Shaft (inch) | 4 1/4 |
| Motor Bearing | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Mounting Stud Location | Shaft End |
| Nameplate RPM | 1600 |
| Phase | Single |
| Power (HP) | 1/19 |
| Shaft Diameter (inch) | 3/8 |
| Shaft Length (inch) | 3/4 |
| Standard | CE, CSA Certified, UL Recognized |
| Voltage (V) | 220 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
AC gearmotor component motors consist of a motor and an integrated series of gears or a gearbox to customize output speed and torque to meet a specific requirement. They allow for compatible gearboxes to be used on the same motor. The motors have a totally enclosed nonventilated (TENV) enclosure that doesn't have an external cooling fan and depends on convection air for cooling, making them suitable for fans and blowers in HVAC applications.
