KEW8035
World's first non contact phase rotation meter
The world’s first non-contact phase rotation meter
No metal contact needed means safer and faster testing
Wide measuring range for 3 phase installations from 70V to 1000V AC.

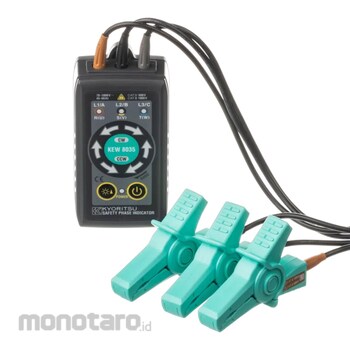

Kewtech Non-contact Safety Phase Rotation Meter
#Grup produk P112333272
Spesifikasi
| Applicable Standards | IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree2,, IEC 61557-1, -7 |
|---|---|
| Battery Voltage Warning | Power LED blinks if battery voltage is too low |
| Clamp Diameter Range (mm) | From ø2.4 to 30 insulated cables |
| Color Code | L1(U) Red L2(V) White L3(W) Blue |
| Detection Method | Electrostatic induction |
| Dimensions (mm) | 112 (L)x61(W)x36(D) |
| Frequency Range (Hz) | 45 to 66Hz |
| Functions | Phase rotation (Clockwise or Counter Clockwise),, Presence of open phase |
| Measuring Voltage Range | From 70 to 1000V AC phase to phase (sine wave, continuous input) |
| Operating Temperature (°C) | -10 to 50 |
| Operation Humidity (%RH) | 80 (no condensation) |
| Phase Rotation | Clockwise Green arrow LEDs 'rotate' in clockwise, Green, symbol 'CW' lits, intermittent buzzer, Counter Clockwise Red arrow LEDs 'rotate' in counter, clockwise, Red symbol 'CCW' lits, continuous buzzer |
| Power Supply | Alkaline battery(LR6)x4 • Continuous use 100 hours (auto, power off in 10 min.) |
| Storage Conditions | Temperature/Humidity Ranges -20 to 60°C, 80% (no condensation) |
| Test Leads | Double insulated cables, lenght |
| Visual Indication | Via LEDs with Super brightness function |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Key BenefitsNew technology permits safe testing, without the need of direct contact between probes and live wires
No metal contact needed means safer and faster testing
Both old and new phase colourings to aid correct connections
Super bright mode means clear indication even in direct sunlight
Complies with IEC61010-1 CAT.IV 600V and CAT.III 1000V
Key Features
Wide measuring range for 3 phase installations from 70 V to 1000 V AC
The insulated crocodile clips can clip insulated cables from ø2.4 to 30mm
Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones
The instrument can be fixed to a metal panel via the magnet on the back side
