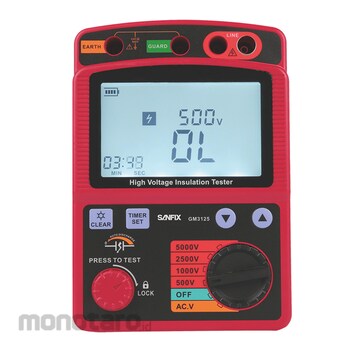

SANFIX High Voltage Insulation Tester
#Grup produk P112329145
Spesifikasi
| Auto-Ranging | Range shifts to upper range: 1000 count. Range shifts to lower range: 95 counts (merely on the insulation resistance range) |
|---|---|
| Battery Life | Approx. 15 hours |
| Dimensions (mm) | 153x96x220 |
| Display | Max. 999 counts LCD display (1000 counts only at 1T is displayed) Bar graph/ max. 36 point. |
| Insulation Resistance | 1000M of more/ DC 1000V (between electrical circuit and enclosure) |
| Open Circuit Voltage (V) | DC 500, +30%-0%; DC 1000, +20%-0%; DC 2500, +20%-0% |
| Operable Altitude (m) | Less than 2000 (Indoor use) |
| Operation Circumstance Humidity (%RH) | ≤85 |
| Operation Circumstance Temperature (°C) | 0 to 40 |
| Over Range Indication | OL mark appears on insulation resistance range. LO mark appears on voltage's range. |
| Overload Protection | Insulation resistance: AC 1200V/ 10s. Voltage: AC 720V/ 10 s |
| Power Supply | DC12V (8x1.5V LR14 Battery) |
| Sample Rate | 0.5 to 10 times/sec |
| Storage Circumstance Humidity (%RH) | ≤90 |
| Storage Circumstance Temperature (°C) | -20 to 60 |
| Test Range Rated Voltage (ohm) | 500V : 0.0 to 99.9M, 100 to 999M; 1000V : 0.0 to 99.9M, 100 to 999M, 1.00 to 9.99G; 2500V : 0.0 to 99.9M, 100 to 999M, 1.00 to 9.99G, 10.0 to 99.9G; 5000V : 0.0 to 99.9M, 100 to 999M, 1.00 to 9.99G, 10.0 to 99.9G, 100 to 1000G |
| Voltage resistance | AC8320 (50/60Hz)/ 5 second (between electrical circuit and enclosure). |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High voltage insulation testers are designed to test insulation resistance in high voltage electrical installations to make sure it remains effective under extremely high potentials.
Feature
FeaturesAuto- discharge function to make, the operation safe.
LCD Back-light.
Digital readout display.
Live circuit warning symbols with audio sounds.
Auto- power off function (in 10 minutes without operation)
Timer measurement function.
Low battery indication
PI measurement (Polarization index measurement)
Suitable for 12V DC adapter (12V/1A)
