Product Overview

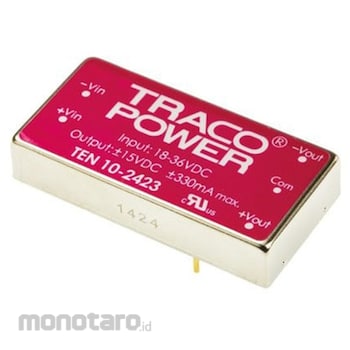

The TEN 10-2423 is a 2-output board-mount isolated DC to DC Converter with tightly regulated output voltage and wide 2:1 input range. The TEN 10 10W series converter offers high efficiency and over voltage protection. This converter is ideal for applications which require isolated and tightly regulated voltages.
- High reliability
- High power density
- Indefinite short-circuit protection
- 1500VDC I/O Isolation
- Input filter to meet EN 55022, class A and FCC, level A without external components
- Industry standard pinout
- Shielded metal case with insulated baseplate
- Operating temperature range -40 to +85°C
Applications
Power Management, Communications & Networking, Industrial
Notes
NRND - Not Recommended for New Designs
TRACO POWER Isolated Through Hole DC/DC Converter
#Grup produk P112327934
Spesifikasi
| Connection Type | THD (Through-Hole Device) |
|---|---|
| Depth (mm) | 10.2 |
| Efficiency (%) | 82 |
| Footprint Type (inch) | 2x1 |
| Housing Type | Metal Case |
| Input Voltage (V) | DC 18 to 36 |
| Length (mm) | 50.8 |
| Mounting Type | PCB Mount |
| Number of Outputs | 2 |
| Output Current (mA) | 330/330 |
| Output voltage (V) | DC ±15 |
| Power Rating (W) | 10 |
| Temperature (°C) | -125 |
| Width (mm) | 25.4 |
