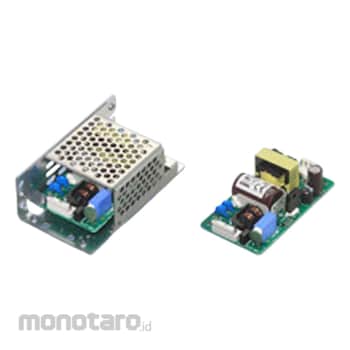

Cosel Single Board Power Supply LHA Series
#Grup produk P112325990
Spesifikasi
| Cooling Method | Natural cooling/forced ventilation [derating] |
|---|---|
| External Dimensions (WxHxD) (mm) | 50x27x87.5 |
| Function | Remote sensing: None |
| Input Current (A) | ACIN 100/230V: 0.62/0.32 type |
| Input Frequency (Hz) | 50/60 (45-440) |
| Input Voltage (V) | AC: 85 to 264 1Φ [derating] |
| Inrush Current (A) | ACIN 100/230V: 15/35 typ (Io=100%) [Ta=25℃ cold start] |
| Maximum Output Power (W) | 31.2 |
| Operating Temperature (°C) | -10 to 70 |
| Option | With chassis |
| Rated Output Current (A) | 1.3 |
| Rated Output Power (W) | 30 |
| Safety Standards | UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1 certified, DEN-AN compliant [except for DC input] |
| Series | LH |
| Specification | With chassis |
| Storage Temperature (°C) | -20 to 75 |
| Vibration (m/s²) | 19.6 [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
