The RSEN series uses an amorphous core for the common mode coil magnetic core, which is effective in preventing malfunction of equipment.
The self-tightening screw and openable cover improve wiring workability.

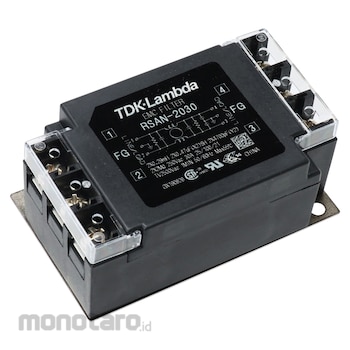

TDK-Lambda Noise Filter RSAN Series
#Grup produk P112325954
Spesifikasi
| Attenuation guaranteed band (MHz) (25dB guaranteed) | (Common mode) 2 to 10 / (Differential mode) 0.4 to 30 |
|---|---|
| Depth (mm) | 35 |
| Derating Start Temperature (°C) | 55 |
| Dimension D (mm) | 75 |
| Dimension E (mm) | 43 |
| Height (mm) | 52 |
| Insulation Resistance (MΩ) | 100min(DC500V/1min)(20±15℃, 65±20℃) |
| Leakage Current (mA) | 1 or less (DC250V/60Hz) |
| Maximum DC Resistance (mΩ) | 6 |
| Operating Temperature (°C) | -25 to 85 |
| Performance | Pulse Attenuation |
| Rated Current (A) | 30 |
| Rated Voltage (V) AC/DC | 250 |
| Safety Standards | EN60939(SEMKO), UL1283, CSA C22.2No.8 |
| Temperature Rise (°C) | 30 |
| Type | Standard |
| Vibration Resistance (Hz) | 10 to 55 (sweep for 1 minute) 1.5 m/s 2 constant speeds in X, Y, and Z directions for 2 hours each |
| Width (mm) | 87 |
