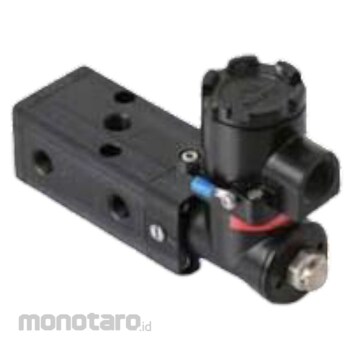

Power Genex Solenoid Valve Body SS316 ESV-SS Series
#Grup produk P112318015
Spesifikasi
| Body Material | SS316 - Aluminum die-cast (only NPT 1/4 pneumatic connections) (valve body - coil housing) |
|---|---|
| Coil Insulation Grade | Class F |
| Duty Cycle (%) | 100 |
| Electrical Connection | PF(G) 1/2 , NPT 1/2 , M20x1.5 |
| Explosion-proof class | Ex d IIC T6 / T5 / T4, Ex tb IIIC T85 / T100 / T135, IP66 |
| Flow Capacity (Cv) | 0.9 |
| Frequency (Hz) | 60 |
| Maximum Air Supply (bar) | 15 |
| Mounting Configuration | NAMUR or screw interface |
| Operating Air Pressure (bar) | 1.5-10 |
| Operating Ambient Temperature (°C) | T6 : -30 - +50, T5 : -30 - +65 , T4 : -30 - +80 |
| Operating Type | 5/2 way / Single Coil Cv 0.9 |
| Pneumatic Connections | PT(Rc) 1/4 or NPT 1/4 |
| Voltage Tolerance (%) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Explosion proof solenoid valve for a confident control under rough working environments
Peringatan
- Mohon untuk mengecek kembali informasi ukuran dan detil produk pada Attribute Information sebelum membeli.- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya.
- Produk yang diterima akan sesuai dengan informasi model number/part number.
Feature
- Rugged aluminum die-cast housing or Stainless steel 316- Rotatable valve head for optimal mounting
- Direct NAMUR mounting or screw mounting
- Usable up to SIL3 acc. to IEC 61508
- Surge protection diode
- Flameproof KCs - certified Ex d IIC , Ex tb IIC, CCC - certified Ex d IIC , Ex tb IIC, IECEx - certified Ex d IIC , Ex tb IIC, ATEX - certified Ex d IIC , Ex tb IIC, TRCU - certified Ex d IIC , Ex tb IIC
