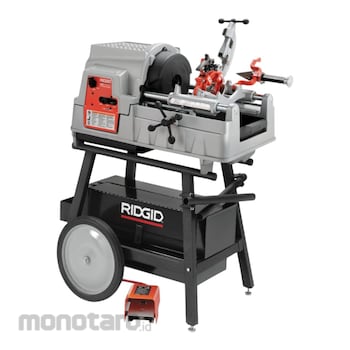

The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID equipment.
Set Content :
11931: Thread Cutting Oil
44185: Wheel, Cutter E1032
97065: 811A 1/8" - 2" NPT Die Head, Quick-Opening, RH
47765: 1/2" - 3/4" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
47770: 1" - 2" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
42365: 341 Reamer Assy
42390: 820 Cutter Assy
46030: 3/16" Hex Key
46015: Key, Hex 5/32
One Gallon Extreme Performance Threading Oil
Diehead, 811A QO L/Die
RIDGID Automatic Chuck Machine
#Grup produk P112311605
Sebelum PPN:
Rp259.999.900 - Rp319.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bolt Capacity (inch) | 1/4-2 |
|---|---|
| Bolt capacity (mm) | 8-50 |
| Chuck | Automatic with four reversible forged jaws |
| Cutter | Self-centering, full-floating |
| Oiling System | Self-priming gerotor oil pump |
| Pipe Capacity (inch) | 1/8-2, 2 1/2-4 with 141 geared threader. |
| Pipe Capacity (mm) | 3-50, 62-100 with 141 geared threader. |
| Reamer Type | 5-flute cone, RH |
| Switches | Forward/off/reverse and integral safety foot switch |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Automatic Chuck retains the pipe when machine starts3-speed transmission ofor optimal speed while cutting, threading or reaming.
Integrated length gauge for accurate pipe cutting.
Large oil reservoir for uninterupted threading
Induction motor for better speed, torque & noise reduction.
Can be used with geared threader Model 141.
Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
