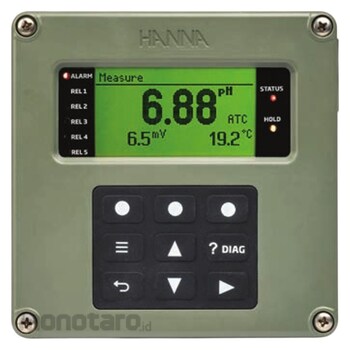

Hanna Instruments Universal Controller with Digital Probe Input HI510 Series
#Grup produk P112311261
Sebelum PPN:
Rp30.999.900 - Rp38.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Analog Output Accuracy | ±0.2% f.s. |
|---|---|
| Data Logging | Interval log; up to 100 files; maximum 8600 records on each stored file. When the maximum limit is reached; the most recent file with automatically erase the oldest one.Event log; maximum 100 records. When the maximum limi |
| Digital Communications | RS-485 serial port for remote monitoring and controlUSB-C port to retrieve log files and firmware upgrades |
| Digital Inputs | 2 independent; galvanically isolated inputs; configurable for Hold & Cleaning functions; On state: 5 to 24 Vdc; low or high level active |
| Dimensions (mm) | 144.0x144.0x151.3 |
| Display | Graphic LCD; 128x64 pixel B/W with backlight |
| Enclosure | Single case 1/2 DIN; type 4x IP65 ingress protection |
| Installation Category | II |
| Operating Environment (°C) | -20 to 50; maximum 100% RH non-condensing |
| Power Consumption (VA) | 15 |
| Power Supply | 100 - 240 Vac ± 10%; 50/60 Hz; 15VA |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
HI510 is an advanced universal process controller that can be configured for many applications requiring monitoring and/or control of process parameters. This controller features a digital probe input that will automatically detect and update the meter with the parameter that it measures.
Feature
- Waterproof IP65 (Nema 4X) enclosure- Multi-color LED status indicators & audible alarm
- Universal mounting kits available with wall, pipe, and panel mounting options (All mounting kits must be ordered separately.)
- The Modbus-compliant unit can be integrated within a Modbus-based network and connected to other industrial electronic devices.
The following tasks may be accomplished remotely:
- Monitoring, using the virtual LCD (limited to a single remote control in the entire network)
- Setup
- Loading the Setup configuration file to a controller
