Hanna Instruments ORP Controller and Dosing Pump
#Grup produk P112309965
Sebelum PPN:
Rp12.999.900 - Rp21.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Alarm Relay Set Point | Triggered after 5 sec. if the controller records a set of consecutive readings over or under threshold values |
|---|---|
| Digital Input Signal | External switches can be connected to hold the control due to external events (low reagent level, recirculation pump doesn't work) |
| Dimensions (mm) | 90x142x80 |
| Dosing Control | Proportional and On/Off Control |
| Enclosure | Wall Mounted with Built-in Pump |
| IP Rating | IP65 |
| Maximum Flow Rate | selectable flow rate (0.5 to 3.5 L/hour; 0.13 to 0.96 g/hour); manual control for pump priming |
| ORP Electrode | HI20083 ORP/temperature probe with quick connect DIN connector (supplied) |
| Operating Environment (°C) | 0 to 50, max. 95% RH non-condensing |
| Over Dosing Control | Overtime protection (1 to 180 m in. or Off) |
| Power Consumption (VA) | 15 |
| Power Supply (V AC) | 100 - 240, 50/60 Hz |
| mV (ORP) Calibration | Process calibration: single point, adjustable (± 50 mV around measured ORP value) |
| mV (ORP) Dosing Relay | High or Low Mode Operation; High set point dosing is activated when reading is higher than set point; Low set point dosing is activated when reading is lower than set point (dose oxidizer) |
| mV (ORP) Dosing Set Point | On/Off control using adjustable set point (200 to 900 mV) |
| mV (ORP) Hysteresis Band | Adjustable Hysteresis (10-100 mV) |
| mV (ORP) Proportional Band | Adjustable Proportional Band (10 to 200 mV) |
| mV Accuracy (mV) | ±5 |
| mV Range (mV) | -2000 to 2000 |
| mV Resolution (mV) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

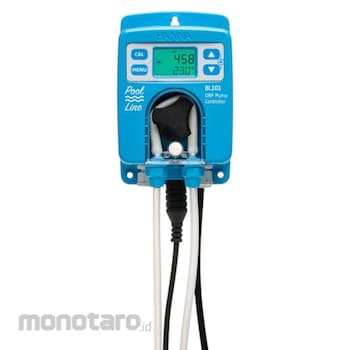

Engineered to be an inexpensive solution for homeowner and maintenance companies to maintain the ideal ORP at all times of a swimming pool or hot tub. The BL101 Pool Line ORP Controller and Dosing Pump is a complete solution with both a process controller and a chemical dosing pump. Simply insert the probe and injection valve in-line with the re-circulation pump and supply the oxidizer (i.e. chlorine) to be dosed.
Feature
- All in one solution for maintaining the proper ORP value- Industrial process probe with 1/2inch NPT threads for insertion into re-circulation line
- Input for level controller or flow switch
