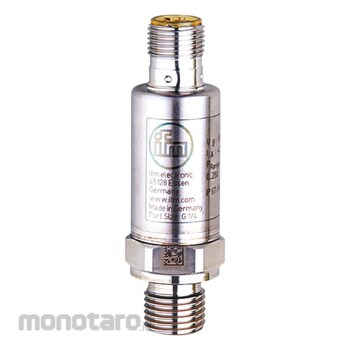

IFM Transmitter Tekanan
#Grup produk P112302528
Spesifikasi
| Analogue Current Output (mA) | 4 to 20 |
|---|---|
| Application | For industrial applications |
| Measurement Range (MPa) | 0 to 25 |
| Media | Liquids and gases |
| Medium Temperature (°C) | -40 to 90 |
| Minimum Bursting Pressure (MPa) | 120 |
| Minimum Insulation Resistance (MΩ) | 100; (500 V DC) |
| Note on Pressure Rating | Static |
| Number of Analogue Outputs | 1 |
| Operating Voltage (V DC) | 8.5 to 36 |
| Power On Delay Time (s) | <0.1 |
| Pressure Rating (MPa) | 62.5 |
| Process Connection | Threaded Connection G 1/4 External Thread (DIN EN ISO 1179-2) |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Type of Pressure | Relative pressure |
| Vacuum Resistance (MPa) | -0.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
