- Lever couplings are lever-operated industrial joints.
- The coupler and adapter can be connected by manually tightening the lever. Attaching them to connections on hoses, valves, pipes, tanks, etc. reduces connection work.
- Select the order code based on the nominal diameter (size).

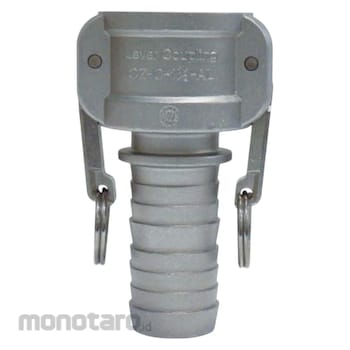

Ozawa Bussan (OZC) Hose Shank Coupler
#Grup produk P112293202
Spesifikasi
| Material | Aluminum die-cast (Body); NBR (Gasket) |
|---|---|
| Dimension A (mm) | 190 |
| Dimension B (mm) | 86 |
| Dimension C (mm) | 54 |
| Dimension F (mm) | 31 |
| Dimension G (mm) | 38 |
| Compatible Fluids | Water, oil, etc. |
| Connection Method | One-touch type |
| Dimension H (mm) | 138 |
| Dimension I (mm) | 40 |
| Dimensions h1 (mm) | 66 |
| Nominal Diameter (inch) | 1 1/2 |
| Nominal Diameter (mm) | 40 |
| Operating Temperature Range (°C) | -50 to 200 (main unit only) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Please select the material of the lever coupling body and gasket that is suitable for the fluid and location of use.*NBR gaskets are fitted as standard to the coupler.
*Please use couplers and adapters made of the same material.
