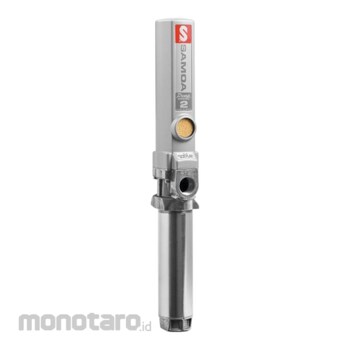

SAMOA Suction Specialty Pneumatic Piston Pump Pumpmaster
#Grup produk P112260569
Spesifikasi
| Air Consumption (nl/minute) | 75 |
|---|---|
| Air Motor Effective Diameter (mm) | 35 |
| Air Motor Stroke (mm) | 75 |
| Air Pressure Operating Range (bar) | 1.5 - 10 |
| Air inlet (inch) | 1/4 NPSM (F) |
| Compatible Fluids | Waste oil |
| Cycles Per Minute (Aprox.) | 100 |
| Delivery (L/minute) | 15 |
| Delivery Per Cycle (L) | 13.5 |
| Fluid Inlet (inch) | 1 BSP (F) |
| Fluid Inlet Type | Ball check |
| Fluid Outlet (inch) | 3/4 NPSM (F) |
| Fluids | Oil |
| Maximum Free Flow Delivery (L/minute) | 53 |
| Maximum Outlet Pressure (bar) | 10 |
| Pressure Ratio | 1:1 |
| Pump Mounting | Universal stub pump |
| Pump Tube Material | Carbon steel |
| Sound Level (dB) | 80 |
| Wetted Materials | Aluminium, Steel, NBR, Acetal, Polyurethane |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM2 series air operated piston pumps. PumpMaster pump with 1:1 ratio with a modified air valve to allow a lower upward movement of the piston to improve pump suction capacity and avoid pump cavitation when suctioning fluids like waste oil through small diameter suction canes.
