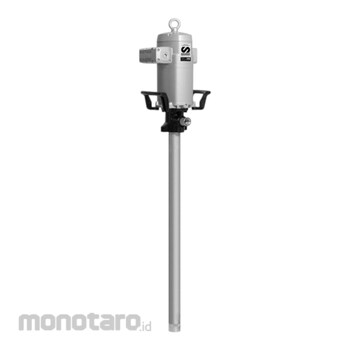

SAMOA Pneumatic Piston Oil Pump Pumpmaster 45 PM45-10:1
#Grup produk P112259767
Sebelum PPN:
Rp58.999.900 - Rp59.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Consumption (nl/minute) | 850 |
|---|---|
| Air Motor Effective Diameter (mm) | 115 |
| Air Motor Stroke (mm) | 100 |
| Air Pressure Operating Range (bar) | 1.5 - 12 |
| Air inlet (inch) | 1/2 BSP (F) |
| Compatible Fluids | Oil, Transmission fluid |
| Cycles Per Minute (Aprox.) | 80 |
| Delivery (L/minute) | 15 |
| Delivery Per Cycle (L) | 15 |
| Fluid Inlet (inch) | 1 1/2 BSP (F) |
| Fluid Inlet Type | Ball check |
| Fluid Outlet (inch) | 3/4 BSP (F) |
| Fluids | Oil |
| Maximum Free Flow Delivery (L/minute) | 65 |
| Maximum Outlet Pressure (bar) | 12 |
| Pressure Ratio | 10:1 |
| Pump Tube Material | Carbon steel |
| Sound Level (dB) | 80 |
| Wetted Materials | Cast iron, Hard chromed steel, Steel, Polyurethane, NBR |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM45 series air operated piston pumps. Double acting air operated moderate pressure pump for very large oil systems or when a low air pressure or cold temperatures would limit pump performance. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pumps. Pump 536 010 can also use bung adaptor (PN 360 006) for bung mounting. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 80 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery.
