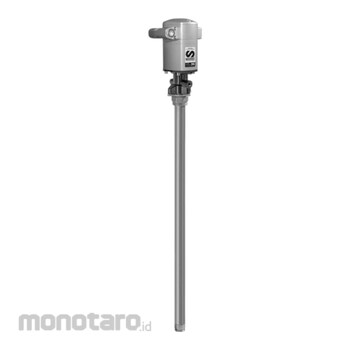

SAMOA Pneumatic Piston Oil Pump Pumpmaster 35 PM35-8:1
#Grup produk P112259749
Sebelum PPN:
Rp21.999.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Consumption (nl/minute) | 350 |
|---|---|
| Air Motor Effective Diameter (mm) | 80 |
| Air Motor Stroke (mm) | 80 |
| Air Pressure Operating Range (bar) | 2 - 12 |
| Air inlet (inch) | 3/8 BSP (F) |
| Compatible Fluids | Oil, Transmission fluid, Corrosion protection fluids |
| Delivery (L/minute) | 7 |
| Fluid Inlet (inch) | 1 BSP (F) |
| Fluid Inlet Type | Ball check |
| Fluid Outlet (inch) | 1/2 BSP (F) |
| Fluids | Oil |
| Maximum Outlet Pressure (bar) | 96 |
| Pressure Ratio | 8:1 |
| Sound Level (dB) | 80 |
| Wetted Materials | Cast iron, Hard chromed steel, Steel, Polyurethane, NBR |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM35 series air operated piston pumps. Double acting air operated high pressure pump for oil distribution applications. Pumps include height adjustable 2” BSP (M) bung adaptor for drum and tank bung mounting. Built in port for optional pressure relief valve (PN 609 008). Maximum air consumption with 72 bar (5 psi) air inlet pressure and 80 cpm. Maximum noise level measured at 1 m (3.3’) from the pump, 7 bar (100 psi) air pressure and free delivery.
