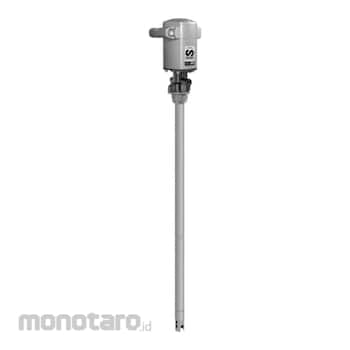

SAMOA Pneumatic Piston Grease Pump Pumpmaster 35 PM35-60:1
#Grup produk P112259642
Sebelum PPN:
Rp18.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Consumption (nl/minute) | 450 |
|---|---|
| Air Motor Effective Diameter (mm) | 80 |
| Air Motor Stroke (mm) | 80 |
| Air Pressure Operating Range (bar) | 2 - 10 |
| Air inlet (inch) | 3/8 BSP (F) |
| Compatible Fluids | Grease |
| Cycles Per Minute (Aprox.) | 80 |
| Delivery (g/minute) | 900 |
| Delivery Per Cycle (g/minute) | 900 |
| Fluid Inlet Type | Chop-check |
| Fluid Outlet (inch) | 3/8 BSP (F) |
| Fluids | Grease |
| Maximum Free Flow Delivery (kg/minute) | 2 |
| Maximum Outlet Pressure (bar) | 600 |
| Pressure Ratio | 60:1 |
| Pump Tube Material | Carbon steel |
| Sound Level (dB) | 80 |
| Wetted Materials | Cast iron, Hard chromed steel, Steel, UHMWPE, NBR, PTFE, Viton |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM35 series air operated piston pumps. Heavy-Duty double acting pumps that combine high pressure (60:1 pressure ratio) and volume delivery. Recommended for use in distribution and greasing systems that include pipe lines, hose reels, etc. with up to 2 simultaneous use outlets even though the number of outlets in the system can be higher. Includes a height adjustable 2” BSPM bung adaptor. Delivery at 80 cycles/min. Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 °C (68 °F) and 80 cpm. Noise level measured at 1 m (3.3’) from the pump, 7 bar (100 psi) air pressure and free delivery.
