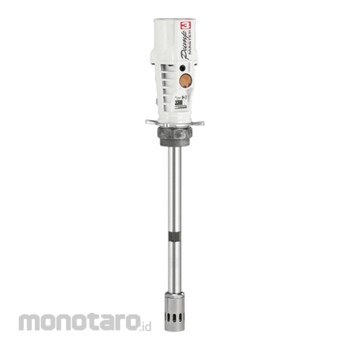

SAMOA Pneumatic Piston Grease Pump Pumpmaster 3 PM3 551
#Grup produk P112259624
Sebelum PPN:
Rp9.799.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Consumption (nl/minute) | 165 |
|---|---|
| Air Motor Effective Diameter (mm) | 70 |
| Air Motor Stroke (mm) | 35 |
| Air Pressure Operating Range (bar) | 1.5 - 10 |
| Air inlet (inch) | 1/4 NPSM (F) |
| Compatible Fluids | Grease |
| Fluid Inlet Type | Chop-check |
| Fluid Outlet (inch) | 1/4 NPSM (F) |
| Fluids | Grease |
| Maximum Outlet Pressure (bar) | 550 |
| Pressure Ratio | 55:1 |
| Sound Level (dB) | 92 |
| Wetted Materials | Steel, Zinc, NBR, PTFE |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM3 air operated piston pumps. Light weight and effective high pressure delivery air operated pumps specially designed for use in mobile and portable greasing units. Pumps are available with four different suction tube lengths, to fit all commercial grease drums: 12,5 - 20 kg (35 lb), 50 kg (120 lb) and 185 kg (400 lb). They include a height adjustable 2” BSP (M) bung adaptor. Maximum air consumption with 6 bar (87 psi) air inlet pressure, NLGI-2 grease at 20 ºC and 110 cpm. Maximum free delivery at 6 bar (87 psi). NLGI-2 grease. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (100 psi) air pressure and free delivery.
