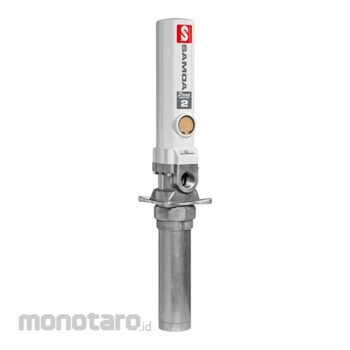

SAMOA Nickel Protected Pneumatic Piston Pump Pumpmaster
#Grup produk P112259341
Spesifikasi
| Air Consumption (nl/minute) | 150 |
|---|---|
| Air Motor Effective Diameter (mm) | 33 |
| Air Motor Stroke (mm) | 75 |
| Air Pressure Operating Range (bar) | 1.5 - 10 |
| Air inlet (inch) | 1/4 BSP (F) |
| Compatible Fluids | Coolant, Water based fluids |
| Cycles Per Minute (Aprox.) | 100 |
| Delivery (L/minute) | 13.5 |
| Delivery Per Cycle (L) | 13.5 |
| Fluid Inlet (inch) | 1 BSP (F) |
| Fluid Inlet Type | Ball check |
| Fluid Outlet (inch) | 3/4 BSP (F) |
| Fluids | Other fluids |
| Maximum Free Flow Delivery (L/minute) | 55 |
| Maximum Outlet Pressure (bar) | 10 |
| Pressure Ratio | 1:1 |
| Pump Mounting | Universal stub pump with bung adaptor |
| Pump Tube Material | Carbon steel |
| Sound Level (dB) | 80 |
| Total Height (mm) | 495 |
| Tube Height (mm) | 212 |
| Wetted Materials | Nickel coated aluminium, Steel, Stainless steel, Acetal, Viton, Polyurethane |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM2 series air operated piston pumps. Double acting air operated low pressure pumps for transferring coolants. Pumps include height adjustable 2” BSP (M) bung adaptor for tank or drum bung mounting. air operated piston pumpss for Fluids accessory: PN 331 110.002, PVC suction tube for 205 l drums.
