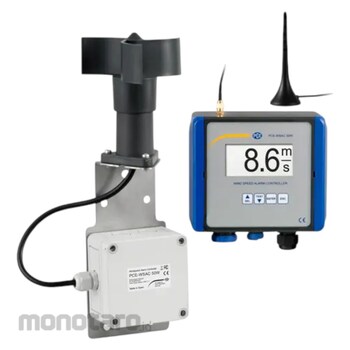

PCE-WSAC 50W 24 Air Velocity Meter
Radio Wind Warning System / Wind Monitoring on Construction Cranes /
4 to 20-mA analog output / Power supply 110 to 230V AC or +24V DC
The air velocity meter PCE-WSAC 50W is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The wind speed meter PCE-WSAC 50W is equipped with alarm relay for a pre-alarm or main alarm.
Due to the high measuring range of up to 50 m / s of the wind speed meter, stormy gusts can also be monitored. The radio range of the wind speed meter is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind alarm PCE-WSAC 50W in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 to 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.
Delivery Scope:
1 x Display of air velocity meter PCE-WSAC 50W 24
1 x Wind sensor of air velocity meter
1 x Self-leveling additional bracket
1 x Radio antenna
1 x Battery Monocell D 1.5V DC
1 x User manual
PCE Instruments Outdoor Wireless Anemometer
#Grup produk P112249627
Spesifikasi
| Accuracy | ± 1 km / h in the range 4-15 km / h; ± 3% in the range 16-180 km / h |
|---|---|
| Accuracy of the Analog Output | ± 1.5% |
| Alarm Relay | Max. 250V AC, 8 A |
| Ambient Temperature (°C) | -20 to 70 |
| Analog Output (mA) | 4-20 |
| Ball Bearing | Stainless steel X65Cr13 |
| Casing | Robust plastic housing |
| Dimensions (mm) | 145x95x125 |
| Display | Backlit 128 x 64 pixel LC display |
| Holder | Stainless steel AISI 304 |
| Housing Material | PA + FG |
| Maximum Input Impedance (Ω) | 500 |
| Measurement Units | km / h, mph, m / s |
| Measuring Range (km/h) | 4-180 |
| Minimum Start Speed (km/hour) | 8 |
| Power Consumption (W) | Approx. 0.3 with 1.5V DC power supply |
| Power Supply | Battery mono cell D 1.5V DC |
| Power Supply for Sensor (V) | +15 DC |
| Protection | IP65 |
| Protection Class | IP65 |
| Radio | IEEE 802.15.4 ISM 2.4 GHz |
| Resolution of the Analog Output | 10 bits |
| Storage Temperature (°C) | -35 to 70 |
